EM-Tec SEM stub adapters
EM-Tec OEM compatible SEM stage adapters

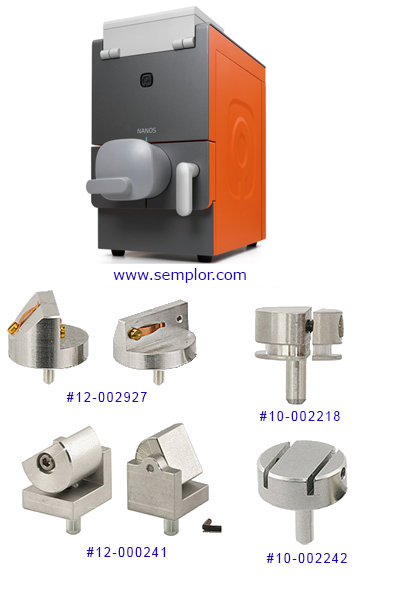

EM-Tec sample stubs and sample holders for
semplor NANOS tabletop SEM

•
• Sample holders   |
  • EM-Tec GS24 gripping stub holder with clamping plate, 0-4mm, aluminium, pin
  • EM-Tec PS4 mini pin stub vise clamp 0-4mm, Ø12.7x7.2mm, pin
  • EM-Tec PS6 mini split pin stub vise clamp 0-6mm, Ø12.7x7.2mm, pin
  • EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin
  • EM-Tec VS8 mini spring-loaded vise holder for up to 8mm, pin
  • EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, Ø15x6mm, pin
  • EM-Tec PS12 pin stub vise clamp 0-12mm, Ø25x7.2mm, pin
  • EM-Tec PS5 pin stub round clamp up to Ø3.5mm, Ø12.7x7.2mm, pin
  • EM-Tec PS8 pin stub round clamp up to Ø6mm, Ø12.7x7.2mm, pin
  • EM-Tec PS15 Pin stub swivel mount, Ø15x15mm, pin
  • EM-Tec TV12 mini variable 0-90° angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin
  • EM-Tec PS16 pin stub round clamp up to Ø16mm, Ø25x7.2mm, pin
  • EM-Tec PV5 mini vise sample clamp, pin
  • EM-Tec B16 bulk sample holder for up 16mm, aluminium, pin
  • EM-Tec GR2 needle / tube sample holder for up to Ø2mm, brass, pin
  • EM-Tec P45 fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, pin
  • EM-Tec GR20 bulk sample holder for up to Ø20mm, gilded brass, pin
  • EM-Tec MC26 compact Smart-Clip metallographic mount holder for Ø25mm / 1 inch mounts , pin
  • EM-Tec MC32 compact Smart-Clip metallographic mount holder for Ø30mm / 1-1/4 inch mounts , pin
  • EM-Tec PS3 mini pin stub SampleClamp 0-2mm, Ø12.7mm, pin
  • EM-Tec PS17 mini swivel vise holder for up to 4mm, aluminium, pin
  • EM-Tec PS9 mini split mount vise 0 - 8mm, pin
  • EM-Tec PS23 pin stub dual slot vise clamp, 2x2.5mm on Ø25x7.2mm pin stub
  • EM-Tec PS27 pin stub dual slot vise clamp, 2x7mm on Ø25x7.2mm pin stub
• S-Clip holders   |
  • EM-Tec S-Clip sample holder with 1x S-Clip on 19mm pin stub
  • EM-Tec S-Clip sample holder with 1xS-Clip 45° on Ø25.4mm pin stub
  • EM-Tec S-Clip sample holder with S-Clip(s) on Ø25.4mm pin stub
  • EM-Tec S-Clip sample holder with 2xS-Clips 45°/90° on Ø25.4mm pin stub
  • EM-Tec PS15C Pin stub swivel mount sample holder with 1xS-Clip, pin
  • EM-Tec TV12C mini variable 0-90° angle tilt sample holder with 1 x S-Clip, angle indicators at 0, 30, 45, 70 and 90°, pin
  • EM-Tec S-Clip sample holder with 2xS-Clips double 90° on Ø25.4mm pin
  • EM-Tec S-Clip sample holder with 1xS-Clip at 90°, Ø12.7mm, pin
  • EM-Tec S-Clip sample holder with 4xS-Clips at 90°, 12.7x12.7x14mm, pin
• Stub adapters   |
  • EM-Tec PT4 pin stub adapter to M4 thread, straight for smaller stubs/holders
  • EM-Tec PJ12 pin stub adapter for Ø12.2mm and Ø9.5mm JEOL stubs
• Sample stubs
  • SEM pin stub Ø6 diameter top, standard pin, copper
  • SEM pin stub Ø6 diameter top, standard pin, aluminium
  • SEM pin stub Ø9.5 diameter top, standard pin, aluminium
  • SEM pin stub Ø12.7 diameter top, standard pin, aluminium
  • SEM pin stub Ø12.7mm diameter, no groove, 8mm pin L, aluminium
  • SEM pin stub Ø12.7 diameter top, with flat, standard pin, aluminium
  • SEM pin stub Ø19 diameter top, standard pin, aluminium
  • SEM pin stub Ø25.4 diameter top, standard pin, aluminium
  • 45 degree angled SEM pin stub Ø12.7 diameter standard pin, aluminium
  • Double 90 degree standard profile SEM pin stub Ø12.7mm diameter standard pin, aluminium
  • 45/90 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium
  • 45 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium
  • Engraved SEM pin stub Ø12.7 diameter with 4 numbered fields, aluminium
  • 45/90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium
  • Engraved SEM pin stub Ø19.0 diameter with 4 numbered fields, aluminium
  • Double 45/90 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium
  • Engraved SEM pin stub Ø25.4 diameter with 12 numbered fields, aluminium
  • Double 90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium
  • SEM Dish pin stub, Ø12.7x7mm with 1.5mm dish depth, aluminium

Introduction

The EM-Tec sample holders and sample stubs offered on these pages are fully compatible with the semplor NANOS tabletop SEM. With the specially designed EM-Tec sample holders, you can extend the versatility of NANOS tabletop SEM, increase productivity and unlock additional applications. They are divided into groups depending on the compatibility of the EM-Tec holders. The NANOS tabletop SEM stage has X-Y movements of 25x25mm and eucentric tilt +15° to -40°.

• EM-Tec sample holders compatible with the semplor NANOS tabletop SEM.
• EM-Tec S-Clip holders compatible with the semplor NANOS table to SEM.
• EM-Tec stub adapters for using JEOL and Hitachi stubs on the semplor NANOS tabletop SEM..
• EM-Tec sample stubs compatible with the semplor NANOS tabletop SEM.

 With the EM-Tec sample holders, the versatility of the semplor NANOS tabletop SEM is enhanced and additional applications can be easily unlocked. The EM-Tec sample holder enable holding (clamping specimens for cross section analysis or to hold larger samples such metallurgical embeddings without the use of adhesives. The maximum sample size for the semplor NANOS tabletop SEM is 45mm diameter with restricted tilt of +/-15°.

1 - EM-Tec SEM sample holders for semplor NANOS tabletop SEM: (images at ordering information)
The EM-Tec sample holders presented on this page are compatible with the standard Nanos sample holder used in the semplor NANOS tabletop SEM. With dedicated EM-Tec sample holders, additional tilt can be added to sample movements. Furthermore, samples can be held without the use of adhesives.

Capacity, size and compatibility of the EM-Tec SEM sample holders for the semplor NANOS tabletop SEM:

Product #	Description	Capacity	Dimensions	Sample holding
12-000211	EM-Tec PS15 swivel pin mount	Ø15mm/90°-0°-90°	Ø15x15mm	Adhesive
12-003240	EM-Tec PS17 mini swivel vise holder	0-4mm/90°-0°-90°	Ø12x18mm	Set screw

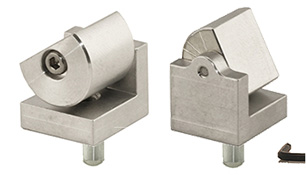

12-000241	EM-Tec TV12 mini variable tilt mount	0-90° / 11x12mm	14x14x14/20mm	sample mounting
10-002245	EM-Tec P45 fixed 45° tilt holder	Ø12.7mm pin stub	Ø12.7x17mm	Pin stub
10-002212	EM-Tec PS3 mini stub SampleClamp	0-2mm thickness	Ø12.7x3.2mm	Screw/washer
10-002240	EM-Tec PS4 mini pin stub vise clamp	0-4mm thickness	Ø12.7x7.2mm	Set screw

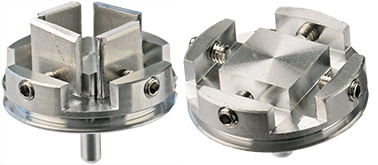

10-002244	EM-Tec PS44 quad vise stub holder	0-4mm thickness	Ø25.4x7.2mm	4 x Set screw
12-002209	EM-Tec PV5 mini vise clamp	0-5mm thickness	Ø25x7.2mm	Mini vise / thumbscrew
10-002218	EM-Tec PS6 mini pin stub split vise clamp	0-6mm thickness	Ø12.7x7.2mm	Mini vise jaws
12-000230	EM-Tec PS9 mini split mount vise clamp	0-8mm thickness	Ø15x10mm	Mini vise jaws
10-002242	EM-Tec PS7 mini pin stub dual slot vise	2x1mm thickness	Ø15x6mm	Set screws

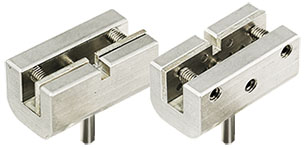

12-000234	EM-Tec GS24 gripping stub with plate	0-4mm	24x13x12mm	Screws + plate
12-000112	EM-Tec PS12 pin stub vise clamp	0-12mm thickness	Ø25x7.2mm	Set screw
10-002223	EM-Tec PS23 pin stub dual slot vise	2x2.5mm thicknesss	Ø25x7.2mm	Set screw
10-002227	EM-Tec PS27 pin stub dual slot vise	2x7mm thickness	Ø25x7.2mm	Set screw
12-000117	EM-Tec GS2 mini pin stub needle clamp	0-Ø2.0mm	Ø6x4mm	Set screw
10-002213	EM-Tec PS5 clamp up to Ø3.5mm	0-Ø3.5mm	Ø12.7x7.2mm	Set screw
10-002216	EM-Tec PS8 clamp up to Ø6.0mm	0-Ø6.0mm	Ø12.7x7.2mm	Set screw
12-000116	EM-Tec PS16 clamp up to Ø16mm	0-Ø16mm	Ø25.5x10mm	Set screw
12-002228	EM-Tec VS8 mini spring loaded vise	0-8mm	25x30x12.5mm	Spring-loaded
12-003216	EM-Tec B16 bulk sample holder	0-16m	23x19x10mm	Set screw

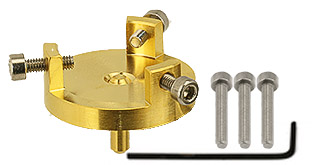

12-000217	EM-Tec GR20 bulk sample holder	Ø20mm max	Ø25x10mm	Screws
12-002926	EM-Tec MC26 Met-mount holder	Ø25mm / Ø1”	Ø27.5x13.5mm	4 Clips
12-002932	EM-Tec MC32 Met-mount holder	Ø30mm / Ø1-1/4”	Ø33.8x13.5mm	4 Clips



2 – EM-Tec S-Clip holders for the semplor NANOS tabletop SEM  (images at ordering information)
The EM-Tec S-Clips holders with the spring-loaded sample clips compatible with the semplor NANOS tabletop SEM are available on:

•  standard horizontal pin stubs
•  45°  and 45° /90°  pin stubs
•  90° pin stubs.

They are useful for holding thin samples such as Si wafer chips, metal strips, plastic foils, etc.

Specifications of the S-Clip holders:

Product #	Style	Stub size	S-Clips #
12-002910	Horizontal, single S-Clip on Ø19mm pin stub	Ø19x3.2mm	1
12-002920-1/2/3	Horizontal	Ø25x3.2mm	1 or 2 or 3
12-002901	0-180° EM-Tec swivel mount with S-Clip	Ø15x3mm	1
12-002941	0-180° EM-Tec variable tilt with S-Clip	11x12mm	1
12-002925	45° mount with single S-Clip	Ø25x16mm	1
12-002927	45°/90° mount with two S-Clips	Ø25x16mm	2
12-002929	2 x 90°dual 90° mount with two S-Clips	Ø25x16mm	2
12-002911	1 x 90° single 90° mount with single S-Clip	Ø12.7x17mm	1
12-002914	4 x 90°quadruple 90° mount with four S-Clips	12.7x12.7x15mm	4

3 - EM-Tec SEM stub adapters for the semplor NANOS tabletop SEM:    (images at ordering information)
With the EM-Tec SEM stub adapters, Hitachi and JEOL SEM stubs can be used on the semplor NANOS. Quick, no need to re-mount the sample and sample integrity is fully retained. Compatible SEM stub adapters are shown in the table below:

Specifications of the EM-Tec SEM sample stub adapters:

Product #	Type	Base	Adapts to	Overall size
11-000119	PT4	Pin stub	Hitachi stub with M4 thread	Ø15x15mm
11-000216	PJ12	Pin stub	JEOL stubs with 9.5 and 12.2mm diameter	Ø30x10mm

4 - EM-Tec sample stubs for the semplor NANOS tabletop SEM (images at ordering information)
The semplor sample stage travel is 25x25mm.  All pin stubs, pin stub adapters and small pin stub based sample holders up to a diameter of 25mm on this page can be used in the semplor NANOS tabletop SEM. Available sample stubs for the semplor NANOS are:

• Standard flat pins stubs with the popular 12.7 and 25.4mm diameter. Additional sizes are 6, 10, 19mm and 12.7mm with a flat.
• Angled pin stubs with 45°, 45/90° and 90° pre-tilt surfaces.
• Engraved pin stubs with 12.7, 19 and 25.4mm diameter for multiple small specimens and correlative microscopy.
• Dish type pin stub with 12.7mm diameter top for fluid samples and solutions.

Order information for EM-Tec SEM sample holders for the semplor NANOS tabletop SEM

EM-Tec GS24 gripping stub holder with clamping plate, 0-4mm, aluminium, pin Product # Unit Price* Add to Quote / Order 12-000234 each €29,50 Qty:

EM-Tec PS4 mini pin stub vise clamp 0-4mm, Ø12.7x7.2mm, pin Product # Unit Price* Add to Quote / Order 10-002240 each €7,50 Qty: 10-002240-10 pkg/10 €71,25 Qty:

EM-Tec PS6 mini split pin stub vise clamp 0-6mm, Ø12.7x7.2mm, pin Product # Unit Price* Add to Quote / Order 10-002218 each €24,50 Qty:

EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin Product # Unit Price* Add to Quote / Order 10-002244 each €29,50 Qty:

EM-Tec VS8 mini spring-loaded vise holder for up to 8mm, pin Product # Unit Price* Add to Quote / Order 12-002228 each €59,50 Qty:

EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, Ø15x6mm, pin Product # Unit Price* Add to Quote / Order 10-002242 each €19,50 Qty:

EM-Tec PS12 pin stub vise clamp 0-12mm, Ø25x7.2mm, pin Product # Unit Price* Add to Quote / Order 12-000112 each €24,50 Qty:

EM-Tec PS5 pin stub round clamp up to Ø3.5mm, Ø12.7x7.2mm, pin Product # Unit Price* Add to Quote / Order 10-002213 each €18,50 Qty:

EM-Tec PS8 pin stub round clamp up to Ø6mm, Ø12.7x7.2mm, pin Product # Unit Price* Add to Quote / Order 10-002216 each €18,50 Qty:

EM-Tec PS15 Pin stub swivel mount, Ø15x15mm, pin Product # Unit Price* Add to Quote / Order 12-000211 each €38,50 Qty:

EM-Tec TV12 mini variable 0-90° angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin Product # Unit Price* Add to Quote / Order 12-000241 each €59,50 Qty:

EM-Tec PS16 pin stub round clamp up to Ø16mm, Ø25x7.2mm, pin Product # Unit Price* Add to Quote / Order 12-000116 each €24,50 Qty:

EM-Tec PV5 mini vise sample clamp, pin Product # Unit Price* Add to Quote / Order 12-002209 each €39,50 Qty:

EM-Tec B16 bulk sample holder for up 16mm, aluminium, pin Product # Unit Price* Add to Quote / Order 12-003216 each €33,50 Qty:

EM-Tec GR2 needle / tube sample holder for up to Ø2mm, brass, pin Product # Unit Price* Add to Quote / Order 12-000117 each €22,50 Qty:

EM-Tec P45 fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, pin Product # Unit Price* Add to Quote / Order 10-002245 each €39,50 Qty:

EM-Tec GR20 bulk sample holder for up to Ø20mm, gilded brass, pin Product # Unit Price* Add to Quote / Order 12-000217 each €49,50 Qty:

EM-Tec MC26 compact Smart-Clip metallographic mount holder for Ø25mm / 1 inch mounts , pin Product # Unit Price* Add to Quote / Order 12-002926 each €37,50 Qty:

EM-Tec MC32 compact Smart-Clip metallographic mount holder for Ø30mm / 1-1/4 inch mounts , pin Product # Unit Price* Add to Quote / Order 12-002932 each €42,50 Qty:

EM-Tec PS3 mini pin stub SampleClamp 0-2mm, Ø12.7mm, pin Product # Unit Price* Add to Quote / Order 10-002212 each €18,50 Qty:

EM-Tec PS17 mini swivel vise holder for up to 4mm, aluminium, pin Product # Unit Price* Add to Quote / Order 12-003240 each €39,50 Qty:

EM-Tec PS9 mini split mount vise 0 - 8mm, pin Product # Unit Price* Add to Quote / Order 12-000230 each €26,50 Qty:

EM-Tec PS23 pin stub dual slot vise clamp, 2x2.5mm on Ø25x7.2mm pin stub Product # Unit Price* Add to Quote / Order 10-002223 each €24,50 Qty:

EM-Tec PS27 pin stub dual slot vise clamp, 2x7mm on Ø25x7.2mm pin stub Product # Unit Price* Add to Quote / Order 10-002227 each €24,50 Qty:

Order information for the EM-Tec S-Clip holders for the semplor NANOS tabletop SEM

EM-Tec S-Clip sample holder with 1x S-Clip on 19mm pin stub Product # Unit Price* Add to Quote / Order 12-002910 EM-Tec S-Clip sample holder with 1x S-Clip on 19mm pin stub Qty: each €15,00

EM-Tec S-Clip sample holder with 1xS-Clip 45° on Ø25.4mm pin stub Product # Unit Price* Add to Quote / Order 12-002925 EM-Tec S-Clip sample holder with 1xS-Clip 45° on Ø25.4mm pin stub Qty: each €19,95

EM-Tec S-Clip sample holder with S-Clip(s) on Ø25.4mm pin stub Product # Unit Price* Add to Quote / Order 12-002920-1 EM-Tec S-Clip sample holder with 1x S-Clip on Ø25.4mm pin stub Qty: each €18,50 12-002920-2 EM-Tec S-Clip sample holder with 2x S-Clips on Ø25.4mm pin stub Qty: each €24,00 12-002920-3 EM-Tec S-Clip sample holder with 3x S-Clips on Ø25.4mm pin stub Qty: each €29,50

EM-Tec S-Clip sample holder with 2xS-Clips 45°/90° on Ø25.4mm pin stub Product # Unit Price* Add to Quote / Order 12-002927 EM-Tec S-Clip sample holder with 2xS-Clips 45°/90° on Ø25.4mm pin stub Qty: each €25,00

EM-Tec PS15C Pin stub swivel mount sample holder with 1xS-Clip, pin Product # Unit Price* Add to Quote / Order 12-002901 EM-Tec PS15C Pin stub swivel mount sample holder with 1xS-Clip, pin Qty: each €48,50

EM-Tec TV12C mini variable 0-90° angle tilt sample holder with 1 x S-Clip, angle indicators at 0, 30, 45, 70 and 90°, pin Product # Unit Price* Add to Quote / Order 12-002941 EM-Tec TV12C mini variable 0-90° angle tilt sample holder with 1 x S-Clip, angle indicators at 0, 30, 45, 70 and 90°, pin Qty: each €69,50

EM-Tec S-Clip sample holder with 2xS-Clips double 90° on Ø25.4mm pin Product # Unit Price* Add to Quote / Order 12-002929 EM-Tec S-Clip sample holder with 2xS-Clips double 90° on Ø25.4mm pin stub Qty: each €26,50

EM-Tec S-Clip sample holder with 1xS-Clip at 90°, Ø12.7mm, pin Product # Unit Price* Add to Quote / Order 12-002911 EM-Tec S-Clip sample holder with 1xS-Clip at 90°, Ø12.7mm, pin Qty: each €25,50

EM-Tec S-Clip sample holder with 4xS-Clips at 90°, 12.7x12.7x14mm, pin Product # Unit Price* Add to Quote / Order 12-002914 EM-Tec S-Clip sample holder with 4xS-Clips at 90°, 12.7x12.7x14mm, pin Qty: each €49,50

Order information for the EM-Tec stub adapters for the semplor NANOS tabletop SEM

EM-Tec PT4 pin stub adapter to M4 thread, straight for smaller stubs/holders Product # Unit Price* Add to Quote / Order 11-000119 each €16,50 Qty:

EM-Tec PJ12 pin stub adapter for Ø12.2mm and Ø9.5mm JEOL stubs Product # Unit Price* Add to Quote / Order 11-000216 each €24,50 Qty:

Order information for the EM-Tec sample stubs for the semplor NANOS tabletop SEM

SEM pin stub Ø6 diameter top, standard pin, copper Product # Unit Price* Add to Quote / Order 10-002007-50 SEM pin stub Ø6 diameter top, standard pin, copper Qty: pkg/50 €11,20

SEM pin stub Ø6 diameter top, standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002006-50 SEM pin stub Ø6 diameter top, standard pin, aluminium Qty: pkg/50 €6,00 10-002006-100 SEM pin stub Ø6 diameter top, standard pin, aluminium Qty: pkg/100 €11,00

SEM pin stub Ø9.5 diameter top, standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002010-10 SEM pin stub Ø9.5 diameter top, standard pin, aluminium Qty: pkg/10 €14,00 10-002010-50 SEM pin stub Ø9.5 diameter top, standard pin, aluminium Qty: pkg/50 €66,50 10-002010-100 SEM pin stub Ø9.5 diameter top, standard pin, aluminium Qty: pkg/100 €126,00

SEM pin stub Ø12.7 diameter top, standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002012-50 SEM pin stub Ø12.7 diameter top, standard pin, aluminium Qty: pkg/50 €14,90 10-002012-100 SEM pin stub Ø12.7 diameter top, standard pin, aluminium Qty: pkg/100 €28,50 10-002012-500 SEM pin stub Ø12.7 diameter top, standard pin, aluminium Qty: pkg/500 €135,00

SEM pin stub Ø12.7mm diameter, no groove, 8mm pin L, aluminium Product # Unit Price* Add to Quote / Order 10-002011-50 SEM pin stub Ø12.7 mm diameter, no groove , 8.0mm pin, aluminium Qty: pkg/50 €12,75 10-002011-100 SEM pin stub Ø12.7mm diameter, no groove, 8.0mm pin, aluminium Qty: pkg/100 €23,90 10-002011-500 SEM pin stub Ø12.7mm diameter, no groove, 8.0mm pin, aluminium Qty: pkg/500 €112,90

SEM pin stub Ø12.7 diameter top, with flat, standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002014-10 SEM pin stub Ø12.7 diameter top, with flat, standard pin, aluminium Qty: pkg/10 €7,90 10-002014-50 SEM pin stub Ø12.7 diameter top, with flat, standard pin, aluminium Qty: pkg/50 €37,50 10-002014-100 SEM pin stub Ø12.7 diameter top, with flat, standard pin, aluminium Qty: pkg/100 €72,00

SEM pin stub Ø19 diameter top, standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002019-10 SEM pin stub Ø19 diameter top, standard pin, aluminium Qty: pkg/10 €16,00 10-002019-50 SEM pin stub Ø19 diameter top, standard pin, aluminium Qty: pkg/50 €84,00 10-002019-100 SEM pin stub Ø19 diameter top, standard pin, aluminium Qty: pkg/100 €159,00

SEM pin stub Ø25.4 diameter top, standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002025-10 SEM pin stub Ø25.4 diameter top, standard pin, aluminium Qty: pkg/10 €19,00 10-002025-50 SEM pin stub Ø25.4 diameter top, standard pin, aluminium Qty: pkg/50 €90,00 10-002025-100 SEM pin stub Ø25.4 diameter top, standard pin, aluminium Qty: pkg/100 €172,00

45 degree angled SEM pin stub Ø12.7 diameter standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002204-1 45 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium Qty: pkg/1 €2,50 10-002204-5 45 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium Qty: pkg/5 €11,90 10-002204-10 45 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium Qty: pkg/10 €22,60

Double 90 degree standard profile SEM pin stub Ø12.7mm diameter standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002217-1 Double 90 degree standard profile SEM pin stub Ø12.7mm diameter standard pin, aluminium Qty: pkg/1 €2,95 10-002217-5 Double 90 degree standard profile SEM pin stub Ø12.7mm diameter standard pin, aluminium Qty: pkg/5 €14,05 10-002217-10 Double 90 degree standard profile SEM pin stub Ø12.7mm diameter standard pin, aluminium Qty: pkg/10 €26,75

45/90 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002206-1 45/90 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium Qty: pkg/1 €2,95 10-002206-5 45/90 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium Qty: pkg/5 €14,00 10-002206-10 45/90 degree angled standard profile SEM pin stub Ø12.7 diameter standard pin, aluminium Qty: pkg/10 €26,65

45 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002205-1 45 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium Qty: pkg/1 €6,00 10-002205-5 45 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium Qty: pkg/5 €28,50

Engraved SEM pin stub Ø12.7 diameter with 4 numbered fields, aluminium Product # Unit Price* Add to Quote / Order 10-002113-1 Engraved SEM pin stub Ø12.7 diameter with 4 numbered fields, aluminium Qty: pkg/1 €4,50 10-002113-10 Engraved SEM pin stub Ø12.7 diameter with 4 numbered fields, aluminium Qty: pkg/10 €41,00

45/90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002209-1 45/90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium Qty: pkg/1 €6,00 10-002209-5 45/90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium Qty: pkg/5 €27,00

Engraved SEM pin stub Ø19.0 diameter with 4 numbered fields, aluminium Product # Unit Price* Add to Quote / Order 10-002119-1 Engraved SEM pin stub Ø19.0 diameter with 4 numbered fields, aluminium Qty: pkg/1 €5,50 10-002119-10 Engraved SEM pin stub Ø19.0 diameter with 4 numbered fields, aluminium Qty: pkg/10 €45,00

Double 45/90 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002207-1 Double 45/90 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium Qty: pkg/1 €6,75 10-002207-5 Double 45/90 degree angled SEM pin stub Ø25.4 diameter standard pin, aluminium Qty: pkg/5 €30,50

Engraved SEM pin stub Ø25.4 diameter with 12 numbered fields, aluminium Product # Unit Price* Add to Quote / Order 10-002125-1 Engraved SEM pin stub Ø25.4 diameter with 12 numbered fields, aluminium Qty: pkg/1 €6,00 10-002125-10 Engraved SEM pin stub Ø25.4 diameter with 12 numbered fields, aluminium Qty: pkg/10 €54,00

Double 90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium Product # Unit Price* Add to Quote / Order 10-002208-1 Double 90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium Qty: pkg/1 €6,00 10-002208-5 Double 90 degree angled SEM pin stub Ø25.4mm diameter standard pin, aluminium Qty: pkg/5 €27,00

SEM Dish pin stub, Ø12.7x7mm with 1.5mm dish depth, aluminium Product # Unit Price* Add to Quote / Order 10-002210-1 SEM Dish pin stub, Ø12.7x7mm with 1.5mm dish depth, aluminium Qty: pkg/1 €5,00 10-002210-5 SEM Dish pin stub, Ø12.7x7mm with 1.5mm dish depth, aluminium Qty: pkg/5 €23,50 10-002210-10 SEM Dish pin stub, Ø12.7x7mm with 1.5mm dish depth, aluminium Qty: pkg/10 €45,00

© Micro to Nano 2025 Website: www.microtonano.com

Micro to Nano BV Tappersweg 91 2031 ET Haarlem Netherlands

Contact - English and German spoken Tel:+31 (0)85 2013155 Info: info@microtonano.com Administration: accounting@microtonano.com

KvK-nr: 90172744 Btw-nr (Tax ID): NL865230900B01 Bankaccount: 0495516724 IBAN: NL32ABNA0495516724 BIC (SWIFT): ABNANL2AMEL
