R D Mathis Evaporation crucibles
small crucibles for basket heaters and shielded crucible heaters



Introduction
R D Mathis Evaporation crucibles

The evaporation crucibles from R.D. Mathis are compatible with the R.D. Mathis basket heaters and heat shielded crucible heaters. The crucibles placed in to the compatible heaters and are used to melt and evaporate wire pieces, chips and powdered materials. They are only used for upwards evaporation. The crucibles are available in the following materials to ensure compatibility (non-wetting) with the material to evaporate:

AOAluminium Oxide
BNBoron Nitride
BNCBoron Nitride Composite
BNC-CLBoron Nitride Composite, Cool Lip
CGraphite (carbon)
GCGlassy Carbon
MOMolybdenum
TA Tantalum
QQuartz

Compatible RD Mathis crucible heaters: Tungsten heat shielded crucible heaters
Compatible RD Mathis basket heaters: Tungsten basket crucible heaters


Ordering information for R D Mathis Evaporation crucibles.


*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

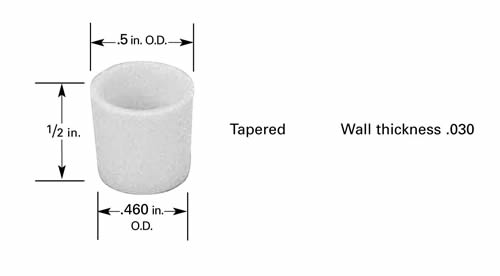

Crucible C1, 1.2ml, Ø12.7mm OD x 12.7mm H, 0.76 mm wall thickness. Use with B8A basket heater & crucible heaters CH-1, CH-10, CH-11 and ME-11
Crucible C1, 1.2ml, Ø12.7mm OD x 12.7mm H, 0.76 mm wall thickness. Use with B8A basket heater & crucible heaters CH-1, CH-10, CH-11 and ME-11
Product # Unit Price* Add to Quote / Order
72-C1-AO Crucible C1, Aluminiumoxide
Qty:

each €34,00
72-C1-BN Crucible C1, Boron Nitride
Qty:

each €43,50
72-C1-BNC Crucible C1, Boron Nitride Composite
Qty:

each €49,10
72-C1-Q Crucible C1, Quartz
Qty:

each €32,10

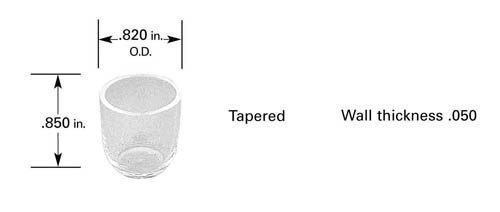

Crucible C2, 4.5 ml, Ø18 mm OD x 19mm H, 1.27 mm wall thickness. Use with B9 basket heater.
Crucible C2, 4.5 ml, Ø18 mm OD x 19mm H, 1.27 mm wall thickness. Use with B9 basket heater.
Product # Unit Price* Add to Quote / Order
72-C2-Q Crucible C2, Quartz
Qty:

each €37,80

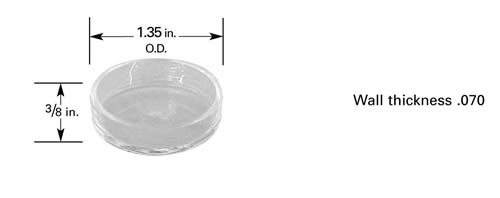

Crucible C3, 6.5 ml, Ø30 mm OD x 9.5mm H, 1.8 mm wall thickness.
Crucible C3, 6.5 ml, Ø30 mm OD x 9.5mm H, 1.8 mm wall thickness.
Product # Unit Price* Add to Quote / Order
72-C3-Q Crucible C3, Quartz
Qty:

each €85,10

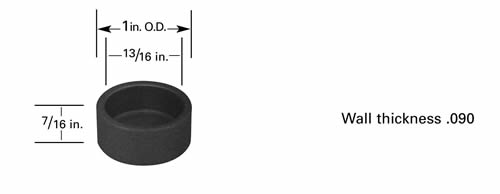

Crucible C4, 2.7 ml, Ø21 mm OD x 11mm H, 2.3 mm wall thickness.
Crucible C4, 2.7 ml, Ø21 mm OD x 11mm H, 2.3 mm wall thickness.
Product # Unit Price* Add to Quote / Order
72-C4-C Crucible C4, Graphite
Qty:

each €52,90
72-C4-MO Crucible C4, Molybdenum
Qty:

each €198,50
72-C4-TA Crucible C4, Tantalum
Qty:

each €737,10

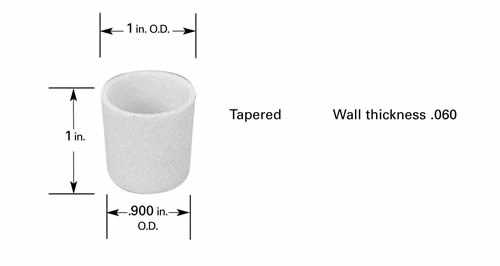

Crucible C5, 12ml,  Ø25.4mm OD x 25.4mm H, 1.5 mm wall thickness. Use with B10 basket & crucible heaters CH-5, CH-12 and CH-13.
Crucible C5, 12ml, Ø25.4mm OD x 25.4mm H, 1.5 mm wall thickness. Use with B10 basket & crucible heaters CH-5, CH-12 and CH-13.
Product # Unit Price* Add to Quote / Order
72-C5-AO Crucible C5, Alumiumoxide
Qty:

each €45,40
72-C5-BN Crucible C5, Boron Nitride
Qty:

each €136,10
72-C5-BNC Crucible C5, Boron Nitride Composite
Qty:

each €147,40
72-C5-Q Crucible C5, Quartz
Qty:

each €43,50
72-C5-BNC-CL Crucible C5, Boron Nitrid Composite, Cool lip
Qty:

each €207,90
72-C5-GC Crucible C5, Glassy Carbon
Qty:

each €277,80

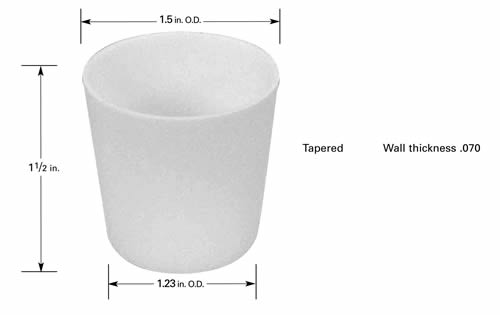

Crucible C6, 25 ml, Ø30 mm OD x 38mm H, 1.8 mm wall thickness. Use with B11 basket heater & crucible heater CH-14.
Crucible C6, 25 ml, Ø30 mm OD x 38mm H, 1.8 mm wall thickness. Use with B11 basket heater & crucible heater CH-14.
Product # Unit Price* Add to Quote / Order
72-C6-AO Crucible C6, Alumiumoxide
Qty:

each €75,60
72-C6-Q Crucible C6, Quartz
Qty:

each €68,00

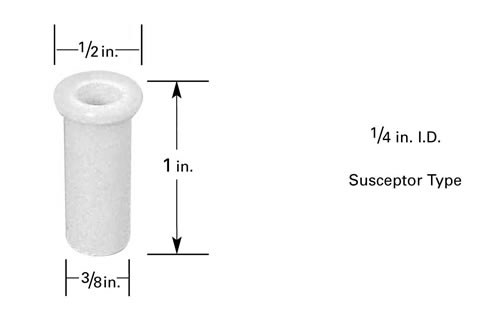

Crucible C7, 0.7 ml, Ø9.5 mm OD x 25mm H, Ø12.7 mm collar. Use with CH-7 crucible heater
Crucible C7, 0.7 ml, Ø9.5 mm OD x 25mm H, Ø12.7 mm collar. Use with CH-7 crucible heater
Product # Unit Price* Add to Quote / Order
72-C7-BN Crucible C7, Boron Nitride
Qty:

each €66,20
72-C7-MO Crucible C7, Molybdenum
Qty:

each €207,90
72-C7-Q Crucible C7, Quartz
Qty:

each €41,60
72-C7-TA Crucible C7, Tantalum
Qty:

each €396,90

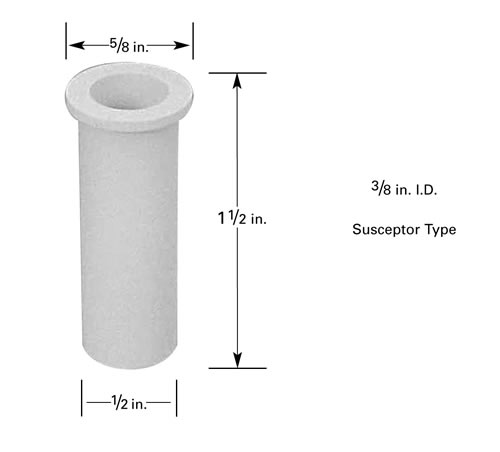

Crucible C8, 10 ml, Ø12.7 mm OD x 38mm H, Ø15.9 mm collar. Use with CH-8 crucible heater
Crucible C8, 10 ml, Ø12.7 mm OD x 38mm H, Ø15.9 mm collar. Use with CH-8 crucible heater
Product # Unit Price* Add to Quote / Order
72-C8-BN Crucible C8, Boron Nitride
Qty:

each €113,40
72-C8-C Crucible C8, Graphite
Qty:

each €47,30
72-C8-MO Crucible C8, Molybdenum
Qty:

each €245,70
72-C8-Q Crucible C8, Quartz
Qty:

each €47,30
72-C8-TA Crucible C8, Tantalum
Qty:

each €623,70

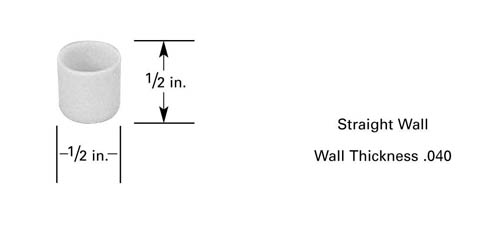

Crucible C9, 1ml, Ø12.7mm OD x 12.7mm H, 1 mm wall thickness. Use with B8B basket & crucible heaters CH-1, CH-10, CH-11 and ME-19.
Crucible C9, 1ml, Ø12.7mm OD x 12.7mm H, 1 mm wall thickness. Use with B8B basket & crucible heaters CH-1, CH-10, CH-11 and ME-19.
Product # Unit Price* Add to Quote / Order
72-C9-AO Crucible C9, Alumiumoxide
Qty:

each €35,90
72-C9-BN Crucible C9, Boron Nitride
Qty:

each €43,50
72-C9-BNC Crucible C9, Boron Nitride Composite
Qty:

each €49,10
72-C9-C Crucible C9, Graphite
Qty:

each €28,40
72-C9-MO Crucible C9, Molybdenum
Qty:

each €122,90
72-C9-Q Crucible C9, Quartz
Qty:

each €32,10
72-C9-TA Crucible C9, Tantalum
Qty:

each €362,90

Crucible C9-BNC-CL, Ø12.7mm OD x 25.4mm H, 1.2 mm wall thickness. Use with B8B basket & crucible heaters CH-1, CH-10, CH-11 and ME-19.
Crucible C9-BNC-CL, Ø12.7mm OD x 25.4mm H, 1.2 mm wall thickness. Use with B8B basket & crucible heaters CH-1, CH-10, CH-11 and ME-19.
Product # Unit Price* Add to Quote / Order
72-C9-BNC-CL Crucible C9, Boron Nitride Composite, Cool lip with 1inch/25.4mm height
Qty:

each €71,95

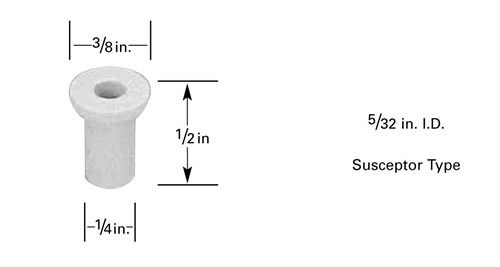

Crucible C10, 0.15 ml, Ø6.35 mm OD x 12.7mm H, Ø9.5 mm collar. Use with CH-9 and ME-20 crucible heaters.
Crucible C10, 0.15 ml, Ø6.35 mm OD x 12.7mm H, Ø9.5 mm collar. Use with CH-9 and ME-20 crucible heaters.
Product # Unit Price* Add to Quote / Order
72-C10-BN Crucible C10, Boron Nitride
Qty:

each €30,20
72-C10-C Crucible C10, Graphite
Qty:

each €22,70
72-C10-MO Crucible C10, Molybdenum
Qty:

each €113,40
72-C10-Q Crucible C10, Quartz
Qty:

each €26,50
72-C10-TA Crucible C10, Tantalum
Qty:

each €321,30
