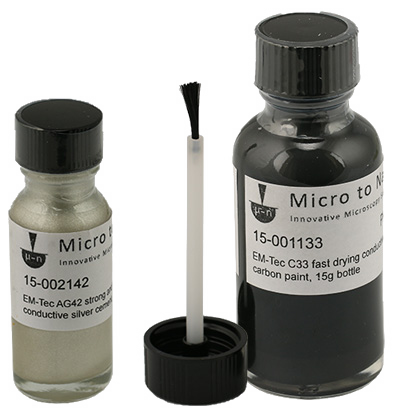

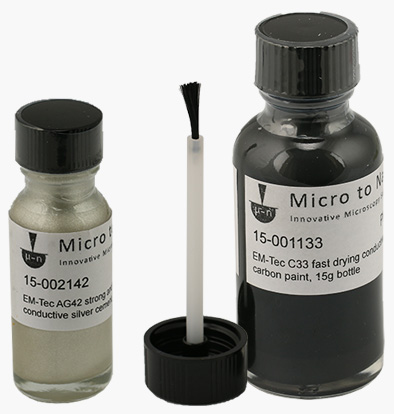

EM-Tec conductive paints, pastes and cements


EM-Tec conductive paints, pastes and cements EM-Tec AG42 strong and highly conductive silver cement, 25g bottle EM-Tec C33 fast drying conductive carbon paint, 15g bottle

The EM-Tec conductive paints, pastes and cements are selected for sample preparation use in electron microscopy, focused ion beam, electron microprobe and scanning probe applications. The EM-Tec conductive paints, pasts and cements offer different properties to cover a variety of applications. The current product line consists of:

Conductive paint and glues are ideal to make conductive paths to ground for SEM samples. Used for making contacts, conductive bonding of samples on specimen stubs or shielding surfaces of non-conducting samples. The EM-Tec conductive paint and cements are used for many applications besides electron microscopy in repairing contacts, tracks on circuit boards, prototyping, conductive lubrication, electrochemical plating and EMI/RFI shielding. The EM-Tec C30 premium water based conductive carbon paint is solvent free and should be preferred to avoid hydro-carbon contamination in the SEM.


Specifications of the EM-Tec conductive paints and cements

Paint / Cement

EM-Tec
C30F

EM-Tec
C32

EM-Tec
C33

EM-Tec
C38

EM-Tec
CHT37

EM-Tec
AG15

EM-Tec AG42

EM-Tec AG44

EM-Tec AG45

EM-Tec AG46

EM-Tec
NI41

Product #

15-001130F
15-001131F

15-001132

15-001133

15-001138

15-001137

15-002114

15-002115

15-002141
15-002142

15-002143
15-002144

15-002147

15-002145
15-002146

15-004141

Filler Type
wt%

Graphite 22%

Graphene 10%

Graphite
10%

Carbon
15%

Graphite
30%

Silver
58%

Silver
73%

Silver
61%

Silver
39%

Silver
60%

Nickel
50%

Type

thin paint

thin paste

thin paint

thin paste

paste

paint

thin paste

thin paste

paint

paint

thin paste

Resistance (dry)

800 ohm/sq

30 ohm/sq

1200 ohm/sq

50 ohm/sq

5 ohms/sq

0.015 ohm/sq

0.01 ohm/sq

0.01 ohm/sq

0.02
Ohm/sq

0.01 ohm/sq

0.7 ohm/sq

Binder

gel

gel

polymer

acrylic

silicate

thermoplastic resin

acrylic

acrylic

acrylic

urethane

acrylic

Solvent

Water

Water

Isopropanol

Acetone/ MEK

water

MEK

Toluene
/acetone

Acetone

Acetone/
DMC

Water

Toluene/
acetone

Density

1.095g/cm3

1.08g/cm3

0.84g/cm3

0.85g/cm3

1.6g/cm3

1.63g/cm3

2.05g/cm3

1.7g/cm3

1.3g/cm3

1.5g/cm3

2.1g/cm3

Touch dry

5min

5min

>1 min

3min

5-10min

10min

5min

3min

3 min

5min

5min

Full cure time @ 22°C

24hr

24hr

15min

24hrs

n.A cure
2hrs@93°C

8hrs

24hrs

24hrs

24hrs

24hrs

24hrs

Full cure time @ 65°C

45min

45min

>5min

30min

Plus
2hrs@260°C

30min

30min

30min

30min

3hrs

30min

Minimum temperature

-20°C

-20°C

-20°C

-40°C

-200°C

-20°C

-40°C

-40°C

-40°C

-40°C

-40°C

Maximum temperature

+140°C

+140°C

+200°C

+120°C

+2000°C

+105°C

+120°C

+120°C

+120°C

+120°C

+120°C

Mechanical strength

low

low

low

high

medium

medium

high

low

low

low

high

Vacuum compatible (dry)

excellent

excellent

yes

yes

excellent

yes

yes

yes

yes

yes

yes

RoHs compliant

yes

yes

yes

yes

yes

yes

yes

yes

yes

yes

yes

Weight

40g/100g

25g

15g

25g

40g

15g / 25g

15g / 25g

15g / 25g

15g

15g / 25g

25g

Bottle size

60cc/100cc

30cc

30cc

30cc

30cc

15cc / 30cc

15cc/15cc

15cc/30cc

15cc

15cc/30cc

30cc

Thinner-Extender

Water

Water

Isopropanol

Acetone

water

MEK

Acetone

Acetone

Acetone

Water

Acetone

Shelf life @ 20°C

> 3 year

> 3 year

> 3 year

> 3 year

1 year

> 3 year

> 3 year

> 3 year

> 3 year

> 3 year

> 3 year



Ordering information for EM-Tec conductive paints, pastes and cements

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec C30F water based conductive carbon paint, no VOC, 40g bottle
EM-Tec C30F water based conductive carbon paint, no VOC, 40g bottle EM-Tec C30F is a water based conductive carbon paint with fine dispersed graphite flakes (~<1 - 2μm, max. 5um). The EM-Tec C30F carbon paint does not contain any hydro-carbon based solvents and is fully compatible with high vacuum (HV) systems and even UHV systems when dry. Due to its low viscosity, cracks and small gaps are easily filled. EM-Tec C30F shows good conductivity when dry and cured. Heating to 300°C can reduce resistivity to aprox. 25 Ohm/sq. Ideal for mounting SEM specimens and making grounding paths. Samples can be easily removed afterwards due to its low mechanical strength. Good bonding properties on a wide variety of sample materials such as metals, rocks, concrete, ceramics, epoxies, wood and textiles. Other applications are lubrication on moving surfaces and shielding. EM-Tec C30F contains approx. 22% graphite in the solution. On hydrophobic materials, we advise to use the solvent based carbon paints #15-001133 or 15-001138. Supplied in a 60cc glass bottle with 40g contents. Keep container above 0 degrees Celcius; do not freeze!
Product # Unit Price* Add to Quote / Order
15-001130F each €12,75
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-001130F :   I | SDS pdf download


EM-Tec C30F water based conductive carbon paint, no VOC, 100g bottle
EM-Tec C30F water based conductive carbon paint, no VOC, 100g bottle EM-Tec C30F is a premium, water based conductive carbon paint with fine dispersed graphite flakes (<1 - 2 μm, max. 5 um). The EM-Tec C30F carbon paint does not contain any hydro-carbon based solvents and is fully compatible with high vacuum (HV) systems and even UHV systems when dry. Due to its low viscosity, cracks and small gaps are easily filled. EM-Tec C30F shows good conductivity when dry. Heating up to 300°C can reduce resistivity to approx 25 Ohm/sq. Ideal for mounting SEM specimens and making grounding paths. Samples can be easily removed afterwards due to its low mechanical strength. Good bonding properties on a wide variety of sample materials such as metals, rocks, concrete, ceramics, epoxies, wood and textiles. Other applications are lubrication on moving surfaces and shielding. EM-Tec C30 contains approx. 22% graphite in the solution. On hydrophobic materials, we advise to use the solvent based carbon paints #15-001133 or 15-001138. Supplied in a 100cc PET bottle with 100g contents. Keep container above 0 degrees Celcius; do not freeze!
Product # Unit Price* Add to Quote / Order
15-001131F each €25,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-001131F :   I | SDS pdf download


EM-Tec C32 water based conductive graphene-carbon paint, no VOC, 25g bottle
EM-Tec C32 water based conductive graphene-carbon paint, no VOC,  25g bottle EM-Tec C32 is a novel, water based conductive graphene paint with fine dispersed graphene sheets (~1-5μm). The EM-Tec C32 graphene carbon paint is free off any hydro-carbon based solvents and is fully compatible with high vacuum (HV) systems and even UHV systems when dry. Due to its low viscosity, cracks and small gaps are easily filled. EM-Tec C32 shows high conductivity when dry. Ideal for mounting SEM specimens and making grounding paths. Samples can be easily removed afterwards due to its low mechanical strength. Excellent bonding properties on a wide variety of sample materials such as metals, rocks, concrete, ceramics, epoxies, plastics, wood and textiles. Other applications are lubrication on moving surfaces and shielding. EM-Tec C32 contains approx. 10% graphene in the solution. Supplied in a 30cc glass bottle with 25g contents and a cap with brush. Keep container above 0 degrees Celcius; do not freeze!
Product # Unit Price* Add to Quote / Order
15-001132 each €15,90
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-001132 :   SDS pdf download


EM-Tec C33 fast drying conductive carbon paint, 15g bottle
EM-Tec C33 fast drying conductive carbon paint, 15g bottle EM-Tec C33 is an extremely fast drying thin carbon paint (similar to aerosol sprays). EM-Tec C33 has been developed to cover large areas quickly with a thin conductive layer. Ideal for making grounding paths and for covering parts of non-conductive epoxy mounts. Due to its low viscosity it easily fills cracks and narrow gaps. EM-Tec C33 is one of the fastest drying carbon paint on the market. Samples can be removed relatively easily due to its low bonding strength. EM-Tec C33 dries very quickly; thin layers within 10 seconds. It is less suitable for flexible surfaces. Solvent is isopropanol, solution contains approximately 10% graphite with a polymer based binder. Good conductivity. Supplied in a 30cc glass bottle with 15g contents and a separate brush.
Product # Unit Price* Add to Quote / Order
15-001133 each €9,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-001133 :   F | I | SDS pdf download


EM-Tec STC33 Isopropanol solvent / thinner / cleaner, 30ml bottle
EM-Tec STC33 Isopropanol solvent / thinner / cleaner, 30ml bottle EM-Tec STC 33 Isopropanol thinner and cleaner for the EM-Tec C33 fast drying carbon paint. 99.8% pure Isopropanol. Supplied in a 30cc glass bottle.
Product # Unit Price* Add to Quote / Order
15-001150 each €4,95
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-001150 :   F | I | SDS pdf download


EM-Tec C38 strong conductive carbon cement, 25g bottle
EM-Tec  C38 strong conductive carbon cement, 25g bottle EM-Tec C38 is a strong conductive carbon cement based on fine carbon black and graphite flakes with an acrylic binder. EM-Tec C38 exhibits excellent bonding properties on a large variety of materials such as metals, plastics, ceramics, epoxies, rubber, glass, wood and textiles. Ideally suited for making grounding paths and to bond SEM samples on sample stubs. The tough acrylic binder reduces material loss; can be used to make permanent bonds. It has the consistency of a thin paste. Dries relatively quickly, depending on thickness; drying goes quicker with moderate heat up to 65°C. Can be used on flexible surfaces. Solvent is acetone, solution contains approximately 15% carbon black and graphite, acrylic based binder. EM-Tec C38 shows enhanced conductivity when dry. Supplied in a 30cc glass bottle with 25g contents and separate brush.
Product # Unit Price* Add to Quote / Order
15-001138 each €12,90
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-001138 :   F | I | SDS pdf download


EM-Tec AG15 silver paint, 15g bottle
EM-Tec AG15 silver paint, 15g bottle EM-Tec AG15 is a conductive silver paint based on very fine silver flakes with a thermoplastic resin binder with MEK / acetone as diluent. EM-Tec AG15 is fully comparable to EDAG 1415M and DAG 915 from Acheson / Henkel. Applications are making grounding paths and conductive glue for SEM samples, electronic and shielding applications. Achieves good bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, rubber, epoxies and textiles. The low viscosity silver paint is ideal for making grounding tracks and to bond SEM samples on sample stubs. Samples can be easily removed. This silver cement has the consistency of a paint. Dries relatively quickly, depending on thickness; reduce drying time with moderate heat up to 70°C. Solution contains 57.5 – 59 % silver. EM-Tec AG15 exhibits excellent conductivity. Supplied in a 15cc glass bottle with a brush, 15 gram.
Product # Unit Price* Add to Quote / Order
15-002114 each €38,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002114 :   F | I | SDS pdf download


EM-Tec AG15 silver paint, 25g bottle
EM-Tec AG15 silver paint, 25g bottle EM-Tec AG15 is a conductive silver paint based on very fine silver flakes with a thermoplastic resin binder with MEK / acetone as diluent. EM-Tec AG15 is fully comparable to EDAG 1415M and DAG 915 from Acheson / Henkel. Applications are making grounding paths and conductive glue for SEM samples, electronic and shielding applications. Achieves good bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, rubber, epoxies and textiles. The low viscosity silver paint is ideal for making grounding tracks and to bond SEM samples on sample stubs. Samples can be easily removed. This silver cement has the consistency of a paint. Dries relatively quickly, depending on thickness; reduce drying time with moderate heat up to 70°C. Solution contains 57.5 – 59 % silver. EM-Tec AG15 exhibits excellent conductivity. Supplied in a 30cc glass bottle with a brush, 25 gram.
Product # Unit Price* Add to Quote / Order
15-002115 each €58,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002115 :   F | I | SDS pdf download


EM-Tec STC15 solvent / thinner / cleaner for EM-Tec AG15 silver paint, 30ml bottle
EM-Tec STC15 solvent / thinner / cleaner for EM-Tec AG15 silver paint, 30ml bottle EM-Tec STC 15 extender, thinner and cleaner for the EM-Tec AG15 conductive silver paint. 99.9% pure Methyl Ethyl Ketone (MEK). Supplied in a 30cc glass bottle.
Product # Unit Price* Add to Quote / Order
15-002170 each €4,95
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002170 :   F | I | SDS pdf download


EM-Tec AG42 strong and highly conductive silver cement, 15g bottle
EM-Tec AG42 strong and highly conductive silver cement, 15g bottle Currently not in stock, will be available end of October 2024
EM-Tec AG42 is a strong conductive silver cement based on fine silver flakes (10-1μm) with an acrylic binder. Achieves excellent bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, rubber, epoxies and textiles. The strong and tough acrylic binder reduces material loss where as the silver flakes ensure excellent conductivity. Use when highest conductivity is needed. Ideal for making grounding tracks and to bond SEM samples on sample stubs. This silver cement has the consistency of a paste. Dries relatively quickly, depending on thickness; drying time can be reduced with moderate heat up to 65°C. Can be used on flexible surfaces. Solvent is acetone, solution contains approximately 73% silver, acrylic based binder. Excellent conductivity. Supplied in a 15cc glass bottle with a brush, 15 gram.
Product # Unit Price* Add to Quote / Order
15-002141 each €54,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002141 :   Cg | F | I | SDS pdf download


EM-Tec AG42 strong and highly conductive silver cement, 25g bottle.
EM-Tec AG42 strong and highly conductive silver cement, 25g bottle. Currently not in stock, will be available end of October 2024
EM-Tec AG42 is a strong conductive silver cement based on fine silver flakes (10-1μm) with an acrylic binder. Achieves excellent bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, rubber, epoxies and textiles. The strong and tough acrylic binder reduces material loss where as the silver flakes ensure excellent conductivity. Use when highest conductivity is needed. Ideal for making grounding tracks and to bond SEM samples on sample stubs. This silver cement has the consistency of a paste. Dries relatively quickly, depending on thickness; drying time can be reduced with moderate heat up to 65°C. Can be used on flexible surfaces. Solvent is acetone, solution contains approximately 73% silver, acrylic based binder. EM-Tec AG42 shows excellent conductivity. Supplied in a 15cc glass bottle with a brush, 25 gram.
Product # Unit Price* Add to Quote / Order
15-002142 each €82,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002142 :   Cg | F | I | SDS pdf download


EM-Tec AG44 conductive silver paint, 15g bottle
EM-Tec AG44 conductive silver paint, 15g bottle EM-Tec AG44 is a conductive silver paint based on fine silver flakes (10-1um size) with a low VOC acrylic binder. Achieves excellent bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, rubber, epoxies and textiles. The tough, low VOC acrylic binder reduces material loss whereas the silver flakes ensure excellent conductivity. Use when highest conductivity is needed. Ideal for making grounding tracks and to bond SEM samples on sample stubs. Samples can be easily removed. This silver cement has the consistency of a thin paste. Dries relatively quickly, depending on thickness; reduce drying time with moderate heat up to 65°C. Can be used on flexible surfaces. Solvent is acetone, solution contains 61% silver, acrylic based binder. EM-Tec AG44 exhibits excellent conductivity. Supplied in a 15cc glass bottle with a brush, 15 gram.
Product # Unit Price* Add to Quote / Order
15-002143 each €48,00
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002143 :   F | I | SDS pdf download


EM-Tec AG44 conductive silver paint, 25g bottle
EM-Tec AG44 conductive silver paint, 25g bottle EM-Tec AG44 is a strong conductive silver paint based on fine silver flakes (10-1um size) with a low VOC acrylic binder. Achieves excellent bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, rubber, epoxies and textiles. The tough, low VOC, acrylic binder reduces material loss whereas the silver flakes (10-1um) ensure excellent conductivity. Use when highest conductivity is needed. Ideal for making grounding tracks and to bond SEM samples on sample stubs. Samples can be easily removed. This silver cement has the consistency of a thin paste. Dries relatively quickly, depending on thickness; reduce drying time with moderate heat up to 65°C. Can be used on flexible surfaces. Solvent is acetone, solution contains 61% silver, acrylic based binder. EM-Tec AG42 shows excellent conductivity. Supplied in a 30cc glass bottle with a brush, 25 gram.
Product # Unit Price* Add to Quote / Order
15-002144 each €74,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002144 :   F | I | SDS pdf download


EM-Tec AG45 conductive silver paint, extra low VOC, 15g bottle
EM-Tec AG45 conductive silver paint, extra low VOC, 15g bottle EM-Tec AG45 is a conductive silver paint based on very fine silver flakes (~1um size) with an extra low VOC acrylic binder. Achieves excellent bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, rubber, epoxies and textiles. The tough, extra low VOC acrylic binder reduces material loss whereas the silver flakes ensure excellent conductivity. Use when high conductivity is needed. Ideal for making grounding tracks and to bond SEM samples on sample stubs. Samples can be easily removed. This silver cement has the consistency of a paint. Dries relatively quickly, depending on thickness; reduce drying time with moderate heat up to 65°C. Can be used on flexible surfaces. Solvent is acetone/DMC, solution contains 39% silver, acrylic based binder. User friendly: does not contain toluene, xylene or MEK. EM-Tec AG45 exhibits excellent conductivity. Supplied in a 15cc glass bottle with a brush, 15 gram.
Product # Unit Price* Add to Quote / Order
15-002147 each €47,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002147 :   F | I | SDS pdf download


EM-Tec AG46 water-based conductive silver paint, no VOC, 15g bottle
EM-Tec AG46 water-based conductive silver paint, no VOC, 15g bottle EM-Tec AG46 is a conductive silver paint based on fine silver flakes (10-1um size) with a water based urethane binder. It does not contain VOC, is solvent-free and is non-flammable. Achieves excellent bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, paper and paints. Safe to use on even the most delicate plastics. The water-based urethane binder reduces material loss whereas the silver flakes ensure excellent conductivity. Ideal for making grounding tracks and to bond SEM samples on sample stubs. Samples can be easily removed. This silver cement has the consistency of a paint. Dries relatively quickly, depending on thickness; reduce drying time with moderate heat up to 65°C. Solvent is water, solution contains 60% silver, urethane based binder. EM-Tec AG46 exhibits excellent conductivity. Supplied in a 15cc glass bottle with a brush, 15 gram. Keep container above 0 degrees Celcius; do not freeze!
Product # Unit Price* Add to Quote / Order
15-002145 each €59,90
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002145 :   I | SDS pdf download


EM-Tec AG46 water-based conductive silver paint, no VOC, 25g bottle
EM-Tec AG46 water-based conductive silver paint, no VOC, 25g bottle EM-Tec AG46 is a conductive silver paint based on fine silver flakes (10-1um size) with a water based urethane binder. It does not contain VOC, is solvent-free and is non-flammable. Achieves excellent bonding properties on a wide variety of materials including, plastics, ceramics, glass, metals, wood, paper and paints. Safe to use on even the most delicate plastics. The water-based urethane binder reduces material loss whereas the silver flakes ensure excellent conductivity. Ideal for making grounding tracks and to bond SEM samples on sample stubs. Samples can be easily removed. This silver cement has the consistency of a paint. Dries relatively quickly, depending on thickness; reduce drying time with moderate heat up to 65°C. Solvent is water, solution contains 60% silver, urethane based binder. EM-Tec AG46 exhibits excellent conductivity. Supplied in a 30cc glass bottle with a brush, 25 gram. Keep container above 0 degrees Celcius; do not freeze!
Product # Unit Price* Add to Quote / Order
15-002146 each €97,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-002146 :   I | SDS pdf download


EM-Tec NI41 strong and good conductive nickel cement, 25g bottle
EM-Tec NI41 strong and good conductive nickel cement, 25g bottle The EM-Tec NI41 conductive glue with nickel is an excellent alternative when silver or carbon cement are not required. It is a strong acrylic based glue with excellent bonding properties, good conductivity and affordable pricing. Same tough acrylic binder used for the carbon and silver cement. Conductivity is between silver and carbon conductive cements. Can be used for permanent bonding of SEM samples to sample stubs. It has the consistency of a paste. Dries relatively quickly, depending on thickness; drying goes quicker with moderate heat up to 65°C. Can be used on flexible surfaces. Solvent is acetone, solution contains approximately 50% nickel, acrylic based binder. EM-Tec NI41 shows very good conductivity when dry. Supplied in a 30cc glass bottle with 25g contents and separate brush.
Product # Unit Price* Add to Quote / Order
15-004141 each €14,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-004141 :   Cg | F | I | SDS pdf download


EM-Tec STC39 Acetone solvent / thinner / cleaner, 30ml bottle
EM-Tec STC39 Acetone solvent / thinner / cleaner, 30ml bottle EM-Tec STC39 Acetone thinner and cleaner for the EM-Tec acrylic based carbon, silver and nickel paints and cements. 99.99% pure Acetone. Supplied in a 30cc glass bottle.
Product # Unit Price* Add to Quote / Order
15-001160 each €4,95
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-001160 :   F | I | SDS pdf download




SEM Supplies

TEM Supplies

Calibration

Sample Preparation

AFM / SPM

  Product Menu with Images
  SEM Sample Stubs
  Carbon Tabs
  Sample Stub Adapters
  SEM Stage Adapters
  SEM Sample Holders
  SEM Preparation Stands
  Filaments / Cathodes
  Silicon Finder Grid
  Gatan 3View Pins
  FEI Volumescope Pins
  SEM Stub Storage Boxes
  Phenom Supplies
  JEOL NeoScope Supplies
  Hitachi TM Series Supplies
  Field & Lab Sampler Kits
  FlowView liquid sample Kit

Instruments

  Acoustic Enclosures
  Cressington SEM coaters
  TEM Sample Prep
  Diaphragm Pump
  Rotary vacuum Pump
  Precision diamond saw
  TEM Grids
  TEM Support Films
  Silicon Nitride Films
  K-Kit Wet Cell Holder
  Graphene Films
  TEM Grid Boxes
  Cryo Grid Boxes
  TEM Sample Staining
  3mm Embedding Tubes
  Filaments/Cathodes
  Eyelash Manipulators

Cryo Supplies

  Cryo Grid Boxes
  Other Cryo Supplies

FIB Supplies

  FIB Lift-out Grids
  FIB Low Profile Stubs
  FIB Grid Holders
  FIB Pre-tilt Holders
  FIB Pre-tilt stubs
  FIB Grid Boxes
  SEM / FIB Magn. Calib.
  SEM Res. Test Spec.
  EDS / WDS Calibration
  TEM Calibration
  AFM / SPM Calibration
  LM Magn. Calibration

Vacuum Supplies

  Vacuum Gauges
  KF/NW Vacuum Parts
  KF/NW Vacuum Hoses
  ISO Vacuum flange parts
  Vacuum Oil and Grease
  Vacuum Sealant
  Diaphragm Pump
  Rotary vacuum Pump
  Vacuum Sample Storage
  Vacuum Pick-Up Pens

Sample Coating Supplies

  Sputter Targets
  Carbon Rods & Fibers
  Quartz QCM Crystals
  SEM Sample Coating Fluid

Evaporation Supplies

  Thermal Evaporation Sources
  Evaporation Materials
  Supports & Substrates
  SEM Preparation Stands
  Tweezers
  Probes & Picks
  Applicators & Swabs
  Plastic Transfer Pipettes
  Cutting Tools / Scissors
  Conductive Paint/Cement
  Conductive Tapes & Tabs
  Non-Conductive Adhesives
  Sample Storage
  Hand Tools
  Sorting Wire Mesh
  Preparation Surfaces
  Cleaning / Gloves
  Conductive Metal Powders
  Metallographic Sample Prep
  AFM/SPM Discs
  AFM/SPM Disc Pick-up Tool
  AFM/SPM Holders
  AFM/SPM Disc Storage
  Cantilever Tweezers
  AFM/SPM Discs Tweezers
  Nano-Tec Mica Discs
  HOPG Substrates

Light Microscopy

  Correlative Cover Slips
  Glass Microscope Slides
  Glass Cover Slips
  Quartz Microscope Slides
  Quartz Cover Slips
  Black Metal Slides
  Slide Storage Boxes
  LM Calibration
  Plastic Transfer Pipettes
  Optical Lens Tissue
  Glass Petri Dishes
  Digital Microscope
  PTFE Beakers
