EM-Tec top reference holders for metallographic mounts
eliminate tilt effects and ensure multiple samples in the same focal plane and same take off angle




                                       Example

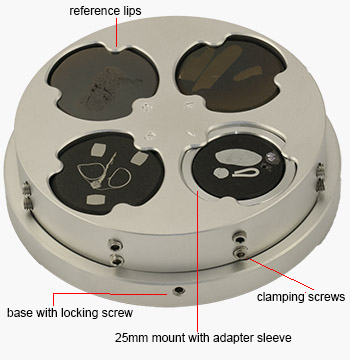

EM-Tec R4 reference holder for four metallographic mounts

EM-Tec R4 reference holder for four Ø30mm or 1-1/4" mounts
#12-000255 (with pin) or #12-000355 (with M4 thread)
or #12-000655 (with Ø14mm JEOL stub)



Introduction

The EM-Tec top reference holders ensure the same focus conditions for the SEM and same take-off angle for the X-ray analysis system the for all mounts in the holder. They have been designed for SEM/EDS/WDS analysis on multiple metallographic and petrographic mounts. The top reference holders for a single mount eliminate unwanted tilt effect which is useful for precise quantitative analysis and for EBSD analysis. The metallographic mounts are placed against three reference lips and secured with screws from the side. The reference lips are only 1mm thick and bevelled to reduce X-ray analysis interference. The multiple mount top reference holders are intended for the larger analytical SEMs with a large SEM stage. Made from vacuum grade aluminium with stainless steel screws. One of the positions can be used to hold a calibration standard with pure elements and/or known compounds.
The top reference holders for metallographic or petrographic mounts or embeddings are available in 5 sizes:


EM-Tec top reference holders for Ø25mm and Ø1” mounts
For the standard 25mm and 1” mounts the available top reference holders can hold 1, 2, 4 or 6 mounts. The holders for 2 and 4 mounts can also be used without the base part if height of the holder is a limiting factor in the SEM. The top reference holders with a base part include set screws in the base to push the top surface of the mount flat against the reference lips.  If reduced height metallographic mounts or thin samples are used in the top references holders for 1, 2 or 4 mounts, Ø25mm spacer discs can be used under the mount. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides.

Specifications of the EM-Tec top reference holders for Ø25mm / Ø1” mounts :

Holder type

Product nr

Mount size

Mounts

Max height

Top / Base

Sample area

Overall size

Stage comp.

EM-Tec R1-25

12-003266

Ø25mm/ 1”

1

20mm

yes / yes

Ø25mm

31x41x26mm

3.2mm pin stub

EM-Tec R1-25

12-003366

Ø25mm/ 1”

1

20mm

yes / yes

Ø25mm

31x41x26mm

M4

EM-Tec R1-25

12-006266

Ø25mm/ 1”

1

20mm

yes / yes

Ø25mm

31x41x26mm

Ø14mm JEOL

EM-Tec R12

12-003212

Ø25mm/ 1”

2

20mm

yes / yes

26x58mm

73x31x26mm

3.2mm pin stub

EM-Tec R12

12-003312

Ø25mm/ 1”

2

20mm

yes / yes

26x58mm

73x31x26mm

M4

EM-Tec R12

12-006212

Ø25mm/ 1”

2

20mm

yes / yes

26x58mm

73x31x26mm

Ø14mm JEOL

EM-Tec R14

12-003214

Ø25mm/ 1”

4

20mm

yes / yes

52x58mm

73x62x30mm

3.2mm pin stub

EM-Tec R14

12-003314

Ø25mm/ 1”

4

20mm

yes / yes

52x58mm

73x62x30mm

M4

EM-Tec R14

12-006214

Ø25mm/ 1”

4

20mm

yes / yes

52x58mm

73x62x30mm

Ø14mm JEOL

EM-Tec R6

12-000259

Ø25mm/ 1”

6

24mm

yes / no

Ø90mm

Ø98mmx25mm

3.2mm pin stub

EM-Tec R6

12-000359

Ø25mm/ 1”

6

24mm

yes / no

Ø90mm

Ø98mmx25mm

M4

EM-Tec R6

12-000659

Ø25mm/ 1”

6

24mm

yes / no

Ø90mm

Ø98mmx25mm

Ø14mm JEOL



EM-Tec top reference holders for Ø30mm and Ø1-1/4” mounts
For the standard 30mm and 1-1/4” mounts there are top reference holders for 1 or 4 mounts. The holders for 2 and 4 mounts can also be used without the base part if height is a limiting factor in the SEM. The top reference holders with a base part include set screws in the base to push the top surface of the mount flat against the reference lips.  If reduced height metallographic mounts or thin samples are used, Ø25mm spacer discs can be used to ensure that the mounts are pushed against the reference lips. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides.

Specifications of the EM-Tec top reference holders for Ø30mm / Ø1-1/4” mounts :

Holder type

Product nr

Mount size

Mounts

Max height

Top / Base

Sample area

Overall size

Stage comp.

EM-Tec R1-30

12-003267

Ø30mm/ 1-1/4”

1

20mm

yes / yes

Ø30mm

37.5x47.5x26mm

3.2mm pin stub

EM-Tec R1-30

12-003367

Ø30mm/ 1-1/4”

1

20mm

yes / yes

Ø30mm

37.5x47.5x26mm

M4

EM-Tec R1-30

12-006267

Ø30mm/ 1-1/4”

1

20mm

yes / yes

Ø30mm

37.5x47.5x26mm

Ø14mm JEOL

EM-Tec R4

12-000255

Ø30mm/ 1-1/4”

4

20mm

yes / yes

68x68mm

Ø96mmx25mm

3.2mm pin stub

EM-Tec R4

12-000355

Ø30mm/ 1-1/4”

4

20mm

yes / yes

68x68mm

Ø96mmx25mm

M4

EM-Tec R4

12-000655

Ø30mm/ 1-1/4”

4

20mm

yes / yes

68x68mm

Ø96mmx25mm

Ø14mm JEOL



EM-Tec top reference holders for Ø40mm and Ø1-1/2” mounts
For the standard 40mm and 1-1/2” mounts there are top reference holders for 1,2 or 4 mounts. The holders for 2 and 4 mounts can also be used without the base part if height is a limiting factor in the SEM. The top reference holders with a base part include set screws in the base to push the top surface of the mount flat against the reference lips. If reduced height metallographic mounts or thin samples are used, Ø32mm spacer discs can be used to ensure that the mounts are pushed against the reference lips. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides. The EM-Tec R2 and R2-1.5 top reference holders include two positions for calibration standards mounted on a standard 12.7mm pin stub.

Specifications of the EM-Tec top reference holders for Ø40mm and Ø1-1/42” mounts:

Holder type

Product nr

Mount size

Mounts

Max height

Top / Base

Sample area

Overall size

Stage comp.

EM-Tec R1-40

12-003268

Ø40mm/ 1-1/2”

1

20mm

yes / yes

Ø40mm

46x55x26mm

3.2mm pin stub

EM-Tec R1-40

12-003368

Ø40mm/ 1-1/2”

1

20mm

yes / yes

Ø40mm

46x55x26mm

M4

EM-Tec R1-40

12-006268

Ø40mm/ 1-1/2”

1

20mm

yes / yes

Ø40mm

46x55x26mm

Ø14mm JEOL

EM-Tec R2

12-000252

Ø40mm

2

20mm

yes / yes

88x40mm

103x46x26mm

3.2mm pin stub

EM-Tec R2

12-000352

Ø40mm

2

20mm

yes / yes

88x40mm

103x46x26mm

M4

EM-Tec R2

12-000652

Ø40mm

2

20mm

yes / yes

88x40mm

103x46x26mm

Ø14mm JEOL

EM-Tec R2-1.5

12-003258

Ø1-1/2”

2

20mm

yes / yes

88x38mm

103x46x26mm

3.2mm pin stub

EM-Tec R2-1.5

12-003358

Ø1-1/2”

2

20mm

yes / yes

88x38mm

103x46x26mm

M4

EM-Tec R2-1.5

12-006258

Ø1-1/2”

2

20mm

yes / yes

88x38mm

103x46x26mm

Ø14mm JEOL

EM-Tec R22

12-002249

Ø40mm

4

20mm

yes / yes

88x85mm

103x92x30mm

3.2mm pin stub

EM-Tec R22

12-003249

Ø40mm

4

20mm

yes / yes

88x85mm

103x92x30mm

M4

EM-Tec R22

12-006249

Ø40mm

4

20mm

yes / yes

88x85mm

103x92x30mm

Ø14mm JEOL

EM-Tec R22-1.5

12-003259

Ø1-1/2”

4

20mm

yes / yes

88x83mm

103x92x30mm

3.2mm pin stub

EM-Tec R22-1.5

12-003359

Ø1-1/2”

4

20mm

yes / yes

88x83mm

103x92x30mm

M4

EM-Tec R22-1.5

12-006259

Ø1-1/2”

4

20mm

yes / yes

88x83mm

103x92x30mm

Ø14mm JEOL



EM-Tec top reference holders for Ø50mm and Ø2” mounts
For the standard 50mm and 2” mounts there is a  top reference holders for 2 mounts. The holders for 2 of the Ø50mm / Ø2” can also be used without the base part if height is a limiting factor in the SEM. The top reference holder with a base part include set screws in the base to push the top surface of the mount flat against the reference lips If reduced height metallographic mounts or thin samples are used, Ø32mm spacer discs can be used to ensure that the mounts are pushed against the reference lips. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides. The EM-Tec R5 top reference holder includes two positions for calibration standards mounted on a standard 12.7mm pin stub.

Specifications of the EM-Tec top reference holders for Ø50mm / Ø2” mounts:

Holder type

Product nr

Mount size

Mounts

Max height

Top / Base

Sample area

Overall size

Stage comp.

EM-Tec R1-50

12-003269

Ø50mm/ 2”

1

20mm

yes / yes

Ø50mm

67x57x26mm

3.2mm pin stub

EM-Tec R1-50

12-003369

Ø50mm/ 2”

1

20mm

yes / yes

Ø50mm

67x57x26mm

M4 thread

EM-Tec R1-50

12-006269

Ø50mm/ 2”

1

20mm

yes / yes

Ø50mm

67x57x26mm

Ø14mm JEOL

EM-Tec R5

12-003256

Ø50mm/ 2”

2

26mm

yes / yes

108x51mm

125x57x32mm

3.2mm pin stub

EM-Tec R5

12-003356

Ø50mm/ 2”

2

26mm

yes / yes

108x51mm

125x57x32mm

M4 thread

EM-Tec R5

12-006256

Ø50mm/ 2”

2

26mm

yes / yes

108x51mm

125x57x32mm

Ø14mm JEOL



EM-Tec top reference holders for a 49x89mm rectangular block mount
The top reference holder for the large 49x89mm embedding include set screws in the base to push the top surface of the mount flat against the reference lips.
Specifications of the EM-Tec top reference holders for large 49x89mm embeddings

Holder type

Product nr

Mount size

Mounts

Max height

Top / Base

Sample area

Overall size

Stage comp.

EM-Tec R7

12-003257

49 x 89mm

1

26mm

yes / yes

49 x 89mm

125x57x32mm

3.2mm pin stub

EM-Tec R7

12-003357

49 x 89mm

1

26mm

yes / yes

49 x 89mm

125x57x32mm

M4

EM-Tec R7

12-006257

49 x 89mm

1

26mm

yes / yes

49 x 89mm

125x57x32mm

Ø14mm JEOL



Ordering Information for EM-Tec reference holders for metallographic mounts for SEMs using pin stubs; TFS, FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, pin EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, pin
Product # Unit Price* Add to Quote / Order
12-003266 each €155,00
Qty:



EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4inch metallographic mount1, pin EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4inch metallographic mount1, pin
Product # Unit Price* Add to Quote / Order
12-003267 each €165,00
Qty:



EM-Tec R1-40 top reference holder for 1x Ø40mm / 1-1/2 inch metallographic mount, Pin EM-Tec R1-40 top reference holder for 1x Ø40mm / 1-1/2 inch metallographic mount, Pin
Product # Unit Price* Add to Quote / Order
12-003268 each €175,00
Qty:



EM-Tec R1-50 top reference holder for 1x Ø50mm / 2 inch metallographic mount, Pin EM-Tec R1-50 top reference holder for 1x Ø50mm / 2 inch metallographic mount, Pin
Product # Unit Price* Add to Quote / Order
12-003269 each €215,00
Qty:



EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, pin EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, pin
Product # Unit Price* Add to Quote / Order
12-000259 each €298,00
Qty:



EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, pin EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, pin
Product # Unit Price* Add to Quote / Order
12-003214 each €498,00
Qty:



EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4inch metallographic mounts, pin EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4inch metallographic mounts, pin
Product # Unit Price* Add to Quote / Order
12-000255 each €388,00
Qty:



EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, pin EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, pin
Product # Unit Price* Add to Quote / Order
12-003212 each €298,00
Qty:



EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, Pin. Includes 2 positions for calibration stubs. EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, Pin. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-000252 each €398,00
Qty:



EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs. EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-003258 each €398,00
Qty:



EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, pin. Includes 4 positions for calibration stubs. EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, pin. Includes 4 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-002249 each €748,00
Qty:



EM-Tec R22-1.5 top reference holder for 4x Ø 1-1/2 inch metallographic mounts, pin. Includes 4 positions for calibration stubs. EM-Tec R22-1.5 top reference holder for 4x Ø 1-1/2 inch metallographic mounts, pin. Includes 4 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-003259 each €748,00
Qty:



EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs. EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-003256 each €495,00
Qty:



EM-Tec R7 top reference holder for 49x89mm metallographic mount, pin EM-Tec R7 top reference holder for 49x89mm metallographic mount, pin
Product # Unit Price* Add to Quote / Order
12-003257 each €595,00
Qty:



Ordering Information for EM-Tec reference holder for metallographic mounts for Hitachi SEMs and the versatile EM-Tec SEM stage adapters

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, M4 EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, M4
Product # Unit Price* Add to Quote / Order
12-003366 each €155,00
Qty:



EM-Tec R1-40 top reference holder for 1x Ø40mm / 1-1/2 inch metallographic mount, M4 EM-Tec R1-40 top reference holder for 1x Ø40mm / 1-1/2 inch metallographic mount, M4
Product # Unit Price* Add to Quote / Order
12-003368 each €175,00
Qty:



EM-Tec R1-50 top reference holder for 1x Ø50mm / 2 inch metallographic mount, M4 EM-Tec R1-50 top reference holder for 1x Ø50mm / 2 inch metallographic mount, M4
Product # Unit Price* Add to Quote / Order
12-003369 each €215,00
Qty:



EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4 inch metallographic mount, M4 EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4 inch metallographic mount, M4
Product # Unit Price* Add to Quote / Order
12-003367 each €165,00
Qty:



EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, M4 EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, M4
Product # Unit Price* Add to Quote / Order
12-000359 each €295,00
Qty:



EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, M4 EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, M4
Product # Unit Price* Add to Quote / Order
12-003314 each €495,00
Qty:



EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, M4 EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, M4
Product # Unit Price* Add to Quote / Order
12-003312 each €295,00
Qty:



EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4 inch metallographic mounts, M4 EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4 inch metallographic mounts, M4
Product # Unit Price* Add to Quote / Order
12-000355 each €385,00
Qty:



EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, M4. Includes 2 positions for calibration stubs. EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, M4. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-000352 each €395,00
Qty:



EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, M4. Includes 2 positions for calibration stubs. EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, M4. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-003358 each €395,00
Qty:



EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, M4. Includes 4 positions for calibration stubs. EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, M4. Includes 4 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-003249 each €748,00
Qty:



EM-Tec R22-1.5 top reference holder for 4x Ø1-1/2 inch metallographic mounts, M4. Includes 4 positions for calibration stubs. EM-Tec R22-1.5 top reference holder for 4x Ø1-1/2 inch metallographic mounts, M4. Includes 4 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-003359 each €748,00
Qty:



EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, M4. Includes 2 positions for calibration stubs. EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, M4. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-003356 each €495,00
Qty:



EM-Tec R7 top reference holder for 49x89mm metallographic mount, M4 EM-Tec R7 top reference holder for 49x89mm metallographic mount, M4
Product # Unit Price* Add to Quote / Order
12-003357 each €595,00
Qty:



Ordering Information for EM-Tec top reference holder for metallographic mounts for JEOL SEM stage adapters with Ø 14mm connection hole

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, Ø14mm JEOL stub EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006266 each €155,00
Qty:



EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4 inch metallographic mount, Ø14mm JEOL stub EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4 inch metallographic mount, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006267 each €165,00
Qty:



EM-Tec R1-40 top reference holder for 1x Ø40mm/1-1/2 inch metallographic mount, Ø14mm JEOL stub EM-Tec R1-40 top reference holder for 1x Ø40mm/1-1/2 inch metallographic mount, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006268 each €175,00
Qty:



EM-Tec R1-50 top reference holder for 1x Ø50mm/ 2 inch metallographic mount, Ø14mm JEOL stub EM-Tec R1-50 top reference holder for 1x Ø50mm/ 2 inch metallographic mount, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006269 each €215,00
Qty:



EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts,  Ø14mm JEOL stub EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-000659 each €298,00
Qty:



EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4 inch metallographic mounts, Ø14mm JEOL stub EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4 inch metallographic mounts, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-000655 each €388,00
Qty:



EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, Ø14mm JEOL stub EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006214 each €498,00
Qty:



EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, Ø14mm JEOL stub EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006212 each €298,00
Qty:



EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, Ø14mm JEOL stub. Includes 2 positions for calibration stubs. EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, Ø14mm JEOL stub. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-000652 each €398,00
Qty:



M-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, Ø14mm JEOL Stub. Includes 2 positions for calibration stubs. M-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, Ø14mm JEOL Stub. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-006258 each €398,00
Qty:



EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, Ø14mm JEOL stub. Includes 4 positions for calibration stubs. EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, Ø14mm JEOL stub. Includes 4 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-006249 each €748,00
Qty:



EM-Tec R22-1.5 top reference holder for 4x Ø1-1/2 inch metallographic mounts, Ø14mm JEOL stub. Includes 4 positions for calibration stubs. EM-Tec R22-1.5 top reference holder for 4x Ø1-1/2 inch metallographic mounts, Ø14mm JEOL stub. Includes 4 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-006259 each €748,00
Qty:



EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, Ø14mm JEOL stub. Includes 2 positions for calibration stubs. EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, Ø14mm JEOL stub. Includes 2 positions for calibration stubs.
Product # Unit Price* Add to Quote / Order
12-006256 each €495,00
Qty:



EM-Tec R7 top reference holder for 49x89mm metallographic mount, Ø14mm JEOL stub EM-Tec R7 top reference holder for 49x89mm metallographic mount, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006257 each €595,00
Qty:



Ordering information for Optional parts for the EM-Tec R4 reference holders #12-000255 & 12-000355

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec R4 adapter sleeve for 25mm/1inch metallographic mounts, for use with EM-Tec R4 top reference holder EM-Tec R4 adapter sleeve for 25mm/1inch metallographic mounts, for use with EM-Tec R4 top reference holder
Product # Unit Price* Add to Quote / Order
12-000354 each €14,50
Qty:



Ø32x5mm spacer discs for EM-Tec R2 reference holder Ø32x5mm spacer discs for EM-Tec R2 reference holder
Product # Unit Price* Add to Quote / Order
12-003355 each €2,50
Qty:



Ø25x5mm spacer discs for EM-Tec R4 reference holder Ø25x5mm spacer discs for EM-Tec R4 reference holder
Product # Unit Price* Add to Quote / Order
12-003354 each €1,50
Qty:





SEM Supplies

TEM Supplies

Calibration

Sample Preparation

AFM / SPM

  Product Menu with Images
  SEM Sample Stubs
  Carbon Tabs
  Sample Stub Adapters
  SEM Stage Adapters
  SEM Sample Holders
  SEM Preparation Stands
  Filaments / Cathodes
  Silicon Finder Grid
  Gatan 3View Pins
  FEI Volumescope Pins
  SEM Stub Storage Boxes
  Phenom Supplies
  JEOL NeoScope Supplies
  Hitachi TM Series Supplies
  Field & Lab Sampler Kits
  FlowView liquid sample Kit

Instruments

  Acoustic Enclosures
  Cressington SEM coaters
  TEM Sample Prep
  Diaphragm Pump
  Rotary vacuum Pump
  Precision diamond saw
  TEM Grids
  TEM Support Films
  Silicon Nitride Films
  K-Kit Wet Cell Holder
  Graphene Films
  TEM Grid Boxes
  Cryo Grid Boxes
  TEM Sample Staining
  3mm Embedding Tubes
  Filaments/Cathodes
  Eyelash Manipulators

Cryo Supplies

  Cryo Grid Boxes
  Other Cryo Supplies

FIB Supplies

  FIB Lift-out Grids
  FIB Low Profile Stubs
  FIB Grid Holders
  FIB Pre-tilt Holders
  FIB Pre-tilt stubs
  FIB Grid Boxes
  SEM / FIB Magn. Calib.
  SEM Res. Test Spec.
  EDS / WDS Calibration
  TEM Calibration
  AFM / SPM Calibration
  LM Magn. Calibration

Vacuum Supplies

  Vacuum Gauges
  KF/NW Vacuum Parts
  KF/NW Vacuum Hoses
  ISO Vacuum flange parts
  Vacuum Oil and Grease
  Vacuum Sealant
  Diaphragm Pump
  Rotary vacuum Pump
  Vacuum Sample Storage
  Vacuum Pick-Up Pens

Sample Coating Supplies

  Sputter Targets
  Carbon Rods & Fibers
  Quartz QCM Crystals
  SEM Sample Coating Fluid

Evaporation Supplies

  Thermal Evaporation Sources
  Evaporation Materials
  Supports & Substrates
  SEM Preparation Stands
  Tweezers
  Probes & Picks
  Applicators & Swabs
  Plastic Transfer Pipettes
  Cutting Tools / Scissors
  Conductive Paint/Cement
  Conductive Tapes & Tabs
  Non-Conductive Adhesives
  Sample Storage
  Hand Tools
  Sorting Wire Mesh
  Preparation Surfaces
  Cleaning / Gloves
  Conductive Metal Powders
  Metallographic Sample Prep
  AFM/SPM Discs
  AFM/SPM Disc Pick-up Tool
  AFM/SPM Holders
  AFM/SPM Disc Storage
  Cantilever Tweezers
  AFM/SPM Discs Tweezers
  Nano-Tec Mica Discs
  HOPG Substrates

Light Microscopy

  Correlative Cover Slips
  Glass Microscope Slides
  Glass Cover Slips
  Quartz Microscope Slides
  Quartz Cover Slips
  Black Metal Slides
  Slide Storage Boxes
  LM Calibration
  Plastic Transfer Pipettes
  Optical Lens Tissue
  Glass Petri Dishes
  Digital Microscope
  PTFE Beakers
