EM-Tec high purity Carbon SEM Stubs


Introduction

  EM-Tec high purity Carbon SEM Stubs
EM-Tec high purity Carbon SEM Stubs

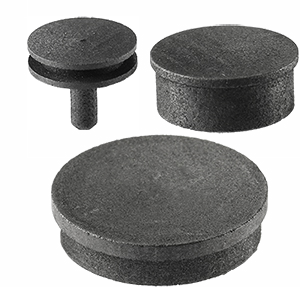

The standard SEM stubs used in an SEM are mostly made from aluminum and sometimes brass. This is fine for many applications if the sample is large and can be mounted directly of the stub. However, for small samples, powders, particles in solutions and fibers the material of the stub can interfere with backscattered electron imaging or X-ray  micro-analysis. To avoid such interference, it is better to mount the sample on an EM-Tec high purity carbon (graphite) specimen stub. The high purity graphitised carbon, which is used for the EM-tec carbon SEM stubs, contains less than 2ppm impurities with 1ppm or less for each single element. The impurities can be B, Mg, Al, Si, Ca or Fe. The available carbon SEM specimen mounts are:

  • Ø12.7mm standard pin stub
  • Ø15mm Hitachi mount with M4 threaded hole
  • Ø25mm Hitachi mount with M4 threaded hole




Ordering information for EM-Tec high purity Carbon SEM Stubs

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec high purity carbon SEM pin stub Ø12.7mm top x 8mm L, standard pin EM-Tec high purity carbon SEM pin stub Ø12.7mm top x 8mm L, standard pin
Product # Unit Price* Add to Quote / Order
10-CC2012-1 EM-Tec high purity carbon SEM pin stub Ø12.7mm top x 8mm L, standard pin
Qty:

each €2,00
10-CC2012-10 EM-Tec high purity carbon SEM pin stub Ø12.7mm top x 8mm L, standard pin
Qty:

pkg/10 €12,00



EM-Tec high purity carbon SEM pin stub Ø25.4mm top x 9.5mm L, standard pin EM-Tec high purity carbon SEM pin stub Ø25.4mm top x 9.5mm L, standard pin
Product # Unit Price* Add to Quote / Order
10-CC2025-1 EM-Tec high purity carbon SEM pin stub Ø25.4mm top x 9.5mm L, standard pin
Qty:

each €4,95
10-CC2025-10 EM-Tec high purity carbon SEM pin stub Ø25.4mm top x 9.5mm L, standard pin
Qty:

pkg/10 €44,50



EM-Tec high purity carbon Hitachi SEM sample stub, Ø15 x 6mm x M4 EM-Tec high purity carbon Hitachi SEM sample stub, Ø15 x 6mm x M4
Product # Unit Price* Add to Quote / Order
10-CC4015-1 EM-Tec high purity carbon Hitachi SEM sample stub, Ø15 x 6mm x M4
Qty:

each €2,95
10-CC4015-10 EM-Tec high purity carbon Hitachi SEM sample stub, Ø15 x 6mm x M4
Qty:

pkg/10 €17,50



EM-Tec high purity carbon Hitachi SEM sample stub, Ø25 x 6mm x M4 EM-Tec high purity carbon Hitachi SEM sample stub, Ø25 x 6mm x M4
Product # Unit Price* Add to Quote / Order
10-CC4025-1 EM-Tec high purity carbon Hitachi SEM sample stub, Ø25 x 6mm x M4
Qty:

each €4,95
10-CC4025-10 EM-Tec high purity carbon Hitachi SEM sample stub, Ø25 x 6mm x M4
Qty:

pkg/10 €44,50
