Micro-Tec Digital Microscopes DM402 and DM330
Micro-Tec Digital Microscopes DM402 and DM330
easy to use and ideal for sample preparation, small parts inspection and assembly
DM402 Digital Microscope with 10” screen and tall stand
The Micro-Tec DM402 digital microscope with a large and bright LCD viewing screen is the ideal tool for precise sample preparation, inspection, micro-assembly and education. Viewing the image on the screen is less strenuous than using a stereo microscope with oculars and makes hand-eye coordination much easier. The Micro-Tec DM402 combine a bright 10” screen with the image sensor, focusing tube and top illumination in a single compact unit. The large 10” high resolution LCD screen coupled to the ultra-high resolution image sensor enables detailed full colour images which can be easily shared with colleagues. The DM402 also offers photo and video capture which can be stored on a micro SD card. Top illumination is provided by integrated LED’s in the imaging tube and a twin flexible gooseneck with LEDs provides angled side illumination to enhance sample details. With a maximum distance of 16cm, larger objects or assemblies can be easily investigated. HDMI and USB outputs are provided for connecting a larger screen or projector or for connecting a computer. The Micro-Tec DM402 includes a comprehensive choice of image settings and colour setting (incl. negative imaging) to improve image quality and to enhance imaging details
Features of the Micro-Tec DM402 Digital Microscope:
- Large 10” (25cm) LCD screen with large viewing angle
- High resolution imaging sensor with 8 integrated white light LEDs
- Optical magnification range 2-70x with additional 3x digital zoom
- Total magnification range 2-1200x
- High resolution image sensor up to 24M (5600x2400 pixels)
- Stand with 25cm post and twin flexible gooseneck LEDs
- Photo and video capture on micro SD card
- Additional USB and HDMI output
- Comprehensive Image control functions
Specifications of the Micro-Tec DM402 digital microscope:
Viewing screen |
10 inch/250mm, 1024x800 pixels, full colour IPS-LCD monitor |
Photo resolution, pixels |
5600x4200, 5200x3900, 4640x3480, 4032x3024, 3648x2736, 3264x2448, 2952x1994, 2048x1536, HD 1920x1080, VGA 640x480 & 1280x960 |
Video resolution, pixels |
2880x2160Px24fps, 2560x1440Px30fps, 1920x1080Px60fps/30fps & 1280x720P x 120fps/60fps.30fps |
Imaging |
Live on monitor, photo storage and video capture |
Illumination integrated |
8 white light LEDs in the lens tube. 0-100% built-in dimmer in LCD screen |
Illumination, twin goose neck |
Flexible goose neck with LEDs , mounted on microscope stand, 8 brightness levels |
Microscope stand |
200x178 mm base plate with 250 mm tall post |
Output |
LCD screen + HDMI + USB + micro SD card (Max.64GB) |
Image control |
Resolution, Sharpness, White balance, Colour, ISO, Exposure, Positive/Negative, Quality & Contrast |
System control |
Push buttons on monitor+ additional remote control |
Power |
AC Adapter 5V/2A/10W with USB output. Input 100-240V / 0.35A / 50/60Hz |
Scope of delivery for the Micro-Tec DM402 digital microscope:
1 x Micro-Tec DM402 2K HDMI Digital Microscope
1 x Base stand with 250mm tall post
1 x Flexible twin goose neck illumination
1 x Illumination control with 3 in 1 cable
1 x USB cable for computer
1 x Remote control
1 x Power supply cable
1 x AC Adaptor
1 x Transmitted light stage
5 x Prepared slides
1 x Installation tool kit
1 x English manual
1 x 32GB Micro SD card

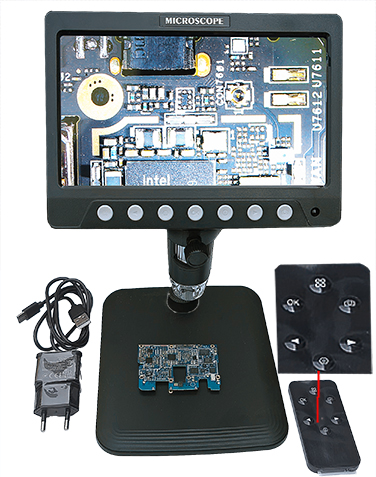

Micro-Tec DM330 Corless Digital Microscope with 7” screen and battery
The Micro-Tec DM330 cordless digital microscope with a large and bright LCD viewing screen is the ideal tool for field microscopy, precise sample preparation, inspection, micro-assembly and education. Viewing the image on the screen is less strenuous than using a stereo microscope with oculars and makes hand-eye coordination much easier. The portable Micro-Tec DM330 combine a bright 7” screen with the image sensor, focusing tube and top illumination in a single compact unit. For application on large samples, the integrated compact unit is suitable for handheld use without the stand. The DM330 also offers photo and video capture which can be stored on a micro SD card. Top illumination is provided by 8 integrated LED’s in the imaging tube. This cordless digital microscope is ideal for field use or for situations where mains power is not available. ; due to it’s light weight it is easy to transport. HDMI and USB outputs are provided for connecting a larger screen or projector or for connecting a computer. The Micro-Tec DM330 includes a comprehensive choice of image settings and colour setting (incl. negative imaging) to improve image quality and to enhance imaging details.
Features of the Micro-Tec DM330 Cordless Digital Microscope:
- Full 7” (17.8cm) LCD screen with large viewing angle
- Cordless digital microscope, portable and ideal for field use
- Bright 5Mp imaging sensor with 8 integrated white light LEDs
- Optical magnification range 4.5-40x with additional 4x digital zoom
- Total magnification range 4.5-160 x (and higher on large monitor)
- Focussing range on camera tube 0 – 110 mm
- Photo & video capture on optional micro SD card (max. 64 GB)
- USB-C port for charging and imaging output, AC Adapter included
- Comprehensive Image control functions
- Working time (when on battery): approx. 3.5 hours
- 2000 mAh internal battery
Specifications of the Micro-Tec DM303 cordless digital microscope:
| Viewing screen | 7 inch/250mm, 1024x800 pixels, full colour IPS-LCD monitor |
Photo resolution, pixels |
5M (2952x1994), 3M (2048x1536), 2M / HD (1920x1080), 1M (1280x720) |
Video resolution, pixels |
1080P (1920x1080) and 720P (1280x720) |
Imaging |
Live on monitor, photo storage and video capture |
Illumination integrated |
8 white light LEDs in the lens tube. 0-100% built-in dimmer in LCD screen |
Microscope stand |
170 x142 mm base plate with 205 mm tall post |
Output |
LCD screen + HDMI + USB + micro SD card (Max.64GB) |
Image control |
Resolution, Sharpness, White balance, Colour, ISO, Exposure, Positive/Negative, Quality & Contrast |
System control |
Push buttons on monitor+ additional remote control |
Power |
AC Adapter 5V/2A/10W with USB output. Input 100-240V / 0.35A / 50/60Hz |
Scope of delivery for the Micro-Tec DM330 cordless digital microscope:
1 x Micro-Tec DM330 with 7 inch display and integrated camera tube
1 x Base stand with 250mm tall post
1 x USB cable for charging/output
1 x Remote control
1 x AC Adaptor
1 x English manual
1 x 64GB Micro SD card
Ordering information for the Micro-Tec DM402 & DM330 digital microscopes
|
|
