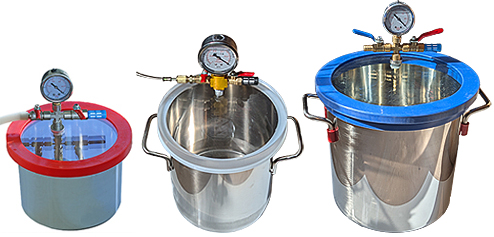

Micro-Tec stainless steel vacuum chamber for degassing
Ideal for degassing epoxy resins, silicones and extracting hydrocarbons


Micro-Tec stainless steel vacuum chamber for degassing
Micro-Tec stainless steel vacuum chamber for degassing
Introduction

The Micro-Tec VC190 stainless steel vacuum chamber has been designed for degassing cold metallographic embeddings, epoxy resins, urethane compounds, silicone rubber and/or extracting hydrocarbons from SEM samples with prepared with tape. With its compact size it is ideal for metallography, microscopy, R&D labs and/or small production facilities.

The pumping and venting lines are integrated in the clear transparent lid together with the vacuum gauge. Both the pumping and venting line include a ball valve for quick opening and closing. The venting line also includes a filter muffler for noise reduction and clean venting

Cold embedding resins, epoxy resin or silicon rubber mixtures should be degassed to remove air bubbles from the material by pumping and venting. The transparent acrylic lid allows for easy observation of the degassing process – in case of too much frothing, the chamber can be vented.

The vacuum chamber can also be used to extract/reduce hydrocarbons in SEM samples. By placing the samples in the vacuum chamber and pumping vacuum, hydrocarbons can be partly removed before placing the samples in the SEM. This can reduce contamination on the sample surface. Useful for adhesives or filters with oil. Not suitable for solvents like acetone, MEK and other solvents not compatible with acrylic (PMMA) material

Features of the Micro-Tec stainless steel vacuum chamber

  • Made from robust stainless steel with transparent acrylic lid
  • Integrated vacuum gauge in lid
  • Pumping valve with hose connector
  • Venting valve with filter muffler
  • Sturdy soft silicone seal area on lid
  • Easy process control through clear lid

Specifications of the Micro-Tec stainless steel vacuum chamber:

Product

Micro-Tec VC190

Product #

13-004190

Inside Diameter

190 mm

Outside Diameter

225 mm

Inside height

120 mm

Total height

240 mm

Volume

3.4  ltr

Weight

1.5 kg

Hose connection on pump line

Ø10 mm

Integrated vacuum gauge

0 to -1 Bar (0 to -30 inch Hg)

Service temperature

5 - 70 °C



The Micro-Tec stainless steel vacuum chamber is available as standalone unit or as a set with the Micro-Tec  MP950D dual stage oil-free diaphragm pump (Vacuum >50 mbar and pumping speed 60L min)


Ordering information for the Micro-Tec VC190 stainless steel vacuum chamber

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Micro-Tec VC190 stainless steel vacuum, 3.4 ltr Micro-Tec VC190 stainless steel vacuum, 3.4 ltr
Product # Unit Price* Add to Quote / Order
13-004190 each €167,50
Qty:



Ordering information for the Micro-Tec VC190 vacuum chamber complete with pumping system

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

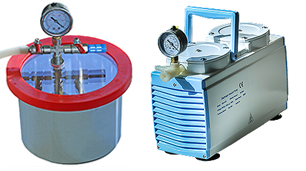

Micro-Tec VC190 stainless steel Vacuum chamber 3.4 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz Micro-Tec VC190 stainless steel Vacuum chamber 3.4 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz
Product # Unit Price* Add to Quote / Order
13-004195 each €777,50
Qty:



Ordering information for options for the Micro-Tec VC190 Vacuum chamber

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Micro-Tec MP950D dual stage diaphragm vacuum pump, 230v/50Hz Micro-Tec MP950D dual stage diaphragm vacuum pump, 230v/50Hz
Product # Unit Price* Add to Quote / Order
60-003950 each €655,00
Qty:
