Stage micrometers and graticules for light microscopy
precise stage micrometers for LM calibration and measurements


example of a stage adaptor

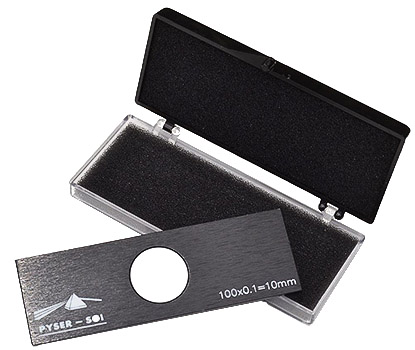

Stage micrometer S1, 10mm horizontal line in 0.1mm divisions,
black slide/glass disc


Introduction

These high quality precise stage micrometers are intended for calibration of standard light microscopes, digital microscopes, stereo microscopes and eyepiece reticules. Additional graticules are offered for counting, location finders and test patterns.
The patterns are manufactured by vacuum deposited chromium lines on glass. The deposited chromium is wear resistant to ensure long term use. The stage micrometer patterns are deposited on a 16mm diameter glass disc which is mounted in a black anodised aluminium slide with a size of 76x25x1mm. They are covered with a No.0 (0.13mm) cover glass. This robust construction protects the pattern and makes them ideal for routine use, instructional purposes and industrial settings.

The following types are available:

  • Stage micrometers for transmitted light with line, cross and graduated patterns
  • Stage micrometers for reflected light with line patterns
  • Counting graticules
  • Location finder (England / Halton)  and particle analysis test slide


Optionally available calibration certificates for the stage micrometers are:



Specifications of the Stage micrometers and graticules

Product#

Pattern

Description

Line width

Accuracy

Certificate

Construction

Transmitted light stage micrometers

35-SG01T0

S1

10mm hor. line / 0.1mm div.

5.0µm

2.0µm

Optional

Aluminium/glass

35-SG02T0

S2

5mm hor. line /  0.05mm div.

5.0µm

1.5µm

Optional

Aluminium/glass

35-SG08T0

S8

1mm hor. line /  0.01mm div.

2.0µm

1.5µm

Optional

Aluminium/glass

35-SG12T0

S12

0.1mm hor. line /  0.002mm div.

1.0µm

1.0µm

Optional

Aluminium/glass

35-SG16T0

S16

1mm cross / 0.01mm div.

3.0µm

1.0µm

Optional

Aluminium/glass

35-SG18T0

S18

Grad. 25mm; 0.5 / 0.1 /0.01mm
1 inch; 0.05” / 0.01” / 0.001”

2.0µm

1.0µm

Optional

All glass slide

35-SG21T0

S21

Grad.5mm; 0.5 / 0.1 / 0.01mm

2.5µm

2.0µm

Optional

Aluminium/glass

35-SG22T0

S22

2mm vert. line /  0.01mm div.

3µm

1.5µm

Optional

Aluminium/glass

35-SG48T0

S48

1mm line/0.01mm. No cvr glass

2.7µm

1.5µm

Optional

Aluminium/glass

Reflected light stage micrometers

35-SG01R0

S1R

10mm hor. line /  0.1mm div.

5.0µm

2.0µm

Optional

Aluminium/glass

35-SG78R0

S78

1mm hor. line /  0.01mm div.

3.0µm

1.0µm

Optional

Aluminium/glass

Counting slides

35-SG09C0

S9

1 x 1mm in 0.1mm squares

5.0µm

1.5µm

-

Aluminium/glass

35-SG10C0

S10

0.5 x 0.5mm in 0.05mm squares

4.0µm

1.5µm

-

Aluminium/glass

35-SG28C0

S28

0.2 x 0.2mm in 0.01mm squares

3.0µm

1.5µm

-

Aluminium/glass

35-SG29C0

S29

1.5 x 1.5mm in 0.01mm squares

3.0µm

1.5µm

-

Aluminium/glass

Test slides and finder graticules

35-SGG7F0

SG7

Particle analysis test slide

10x1 mm area

n.a.

Optional

Aluminium/glass

35-SG07F0

S7

The England Finder

25µm

n.a.

-

All glass slide

35-SG30F0

S30

The Halton Finder

25µm

n.a

-

All glass slide



Ordering Information for stage micrometers and graticules for transmitted light

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

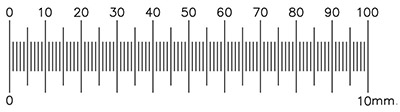

Stage micrometer S1, 10mm horizontal line in 0.1mm divisions, black slide/glass disc
Stage micrometer S1, 10mm horizontal line in 0.1mm divisions, black slide/glass disc Stage micrometer S1 with a 10mm horizontal scale with 0.1mm divisions on glass disc. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG01T0 Stage micrometer S1, 10mm horizontal line in 0.1mm divisions, black slide/glass disc
Qty:

each €152,50
35-SG01TG Stage micrometer S1 with manufacturers comparison certificate
Qty:

each €459,00
35-SG01TU Stage micrometer S1 with UKAS traceable calibration certificate
Qty:

each €499,50
35-SG01TN Stage micrometer S1 with NPL traceable calibration certificate
Qty:

each €1184,00

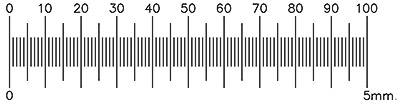

Stage micrometer S2, 5mm horizontal line in 0.05mm divisions, black slide/glass disc
Stage micrometer S2, 5mm horizontal line in 0.05mm divisions, black slide/glass disc Stage micrometer S2 with a 5mm horizontal scale with 0.05mm divisions on glass disc. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG02T0 Stage micrometer S2, 5mm horizontal line in 0.05mm divisions, black slide/glass disc
Qty:

each €174,00
35-SG02TG Stage micrometer S2 with manufacturers comparison certificate
Qty:

each €480,00
35-SG02TU Stage micrometer S2 with UKAS traceable calibration certificate
Qty:

each €520,50
35-SG02TN Stage micrometer S2 with NPL traceable calibration certificate
Qty:

each €1205,00

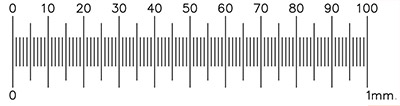

Stage micrometer S8, 1mm horizontal line in 0.01mm divisions, black slide/glass disc
Stage micrometer S8, 1mm horizontal line in 0.01mm divisions, black slide/glass disc Stage micrometer S8 with a 1mm horizontal scale with 0.01mm divisions on glass disc. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG08T0 Stage micrometer S8, 1mm horizontal line in 0.01mm divisions, black slide/glass disc
Qty:

each €152,50
35-SG08TG Stage micrometer S8 with manufacturers comparison certificate
Qty:

each €459,00
35-SG08TU Stage micrometer S8 with UKAS traceable calibration certificate
Qty:

each €499,50
35-SG08TN Stage micrometer S8 with NPL traceable calibration certificate
Qty:

each €1184,00


Stage micrometer S12, 0.1mm horizontal line in 0.002mm divisions, black slide/glass disc
Stage micrometer S12, 0.1mm horizontal line in 0.002mm divisions, black slide/glass disc Stage micrometer S12 with a 0.1mm horizontal scale with 0.002mm divisions on glass disc. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG12T0 Stage micrometer S12, 0.1mm horizontal line in 0.002mm divisions, black slide/glass disc
Qty:

each €266,00
35-SG12TG Stage micrometer S12 with manufacturers comparison certificate
Qty:

each €572,00
35-SG12TU Stage micrometer S12 with UKAS traceable calibration certificate
Qty:

each €1000,50
35-SG12TN Stage micrometer S12 with NPL traceable calibration certificate
Qty:

each €1297,50


Stage micrometer S16, 1mm cross scale in 0.01mm divisions, black slide/glass disc
Stage micrometer S16, 1mm cross scale in 0.01mm divisions, black slide/glass disc Stage micrometer S16 with crossed 1mm scales with 0.01mm divisions on glass disc. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG16T0 Stage micrometer S16, 1mm cross scale in 0.01mm divisions, black slide/glass disc
Qty:

each €216,00
35-SG16TG Stage micrometer S16 with manufacturers comparison certificate
Qty:

each €522,00
35-SG16TU Stage micrometer S16 with UKAS traceable calibration certificate
Qty:

each €719,50
35-SG16TN Stage micrometer S16 with NPL traceable calibration certificate
Qty:

each €1247,00


Stage micrometer S18, double graduated scale, 25mm / 1inch, all glass slide
Stage micrometer S18, double graduated scale, 25mm / 1inch, all glass slide Graduated double micrometer scale S18. 25mm in 0.5mm, last 5mm in 0.1mm and final 1mm in 0.01mm divisions. 1 inch in 0.005” of which the last 4/20 in 0.01” and the final 1/20 in 0.001” divisions. All glass slide without cover glass. Glass slide made from soda lime glass. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG18T0 Stage micrometer S18, double graduated scale, 25mm / 1inch, all glass slide
Qty:

each €197,00
35-SG18TU Stage micrometer S18 with UKAS traceable calibration certificate
Qty:

each €700,50


Stage micrometer S21, graduated scale 5mm in 0.5, 0.2 and 0.01mm divisons, black slide/glass disc
Stage micrometer S21, graduated scale 5mm in 0.5, 0.2 and 0.01mm divisons, black slide/glass disc Graduated micrometer scale S21. 5mm in 0.5mm divisions, 2mm in 0.1mm and 0.2mm in 0.01mm divisions. Useful for quick determination of a range of feature sizes in a sample. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG21T0 Stage micrometer S21, graduated scale 5mm in 0.5, 0.2 and 0.01mm divisons, black slide/glass disc
Qty:

each €174,00
35-SG21TG Stage micrometer S21 with manufacturers comparison certificate
Qty:

each €480,00
35-SG21TU Stage micrometer S21 with UKAS traceable calibration certificate
Qty:

each €677,50
35-SG21TN Stage micrometer S21 with NPL traceable calibration certificate
Qty:

each €1205,00


Stage micrometer S22, 2mm vertical line in 0.01mm divisions, black slide/glass disc
Stage micrometer S22, 2mm vertical line in 0.01mm divisions, black slide/glass disc Stage micrometer S22 with a 2mm vertical scale with 0.01mm divisions on glass disc. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG22T0 Stage micrometer S22, 2mm vertical line in 0.01mm divisions, black slide/glass disc
Qty:

each €174,00
35-SG22TG Stage micrometer S22 with manufacturers comparison certificate
Qty:

each €480,00
35-SG22TU Stage micrometer S22 with UKAS traceable calibration certificate
Qty:

each €520,50
35-SG22TN Stage micrometer S22 with NPL traceable calibration certificate
Qty:

each €1205,00

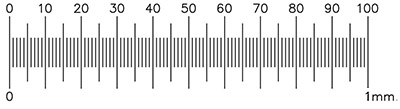

Stage micrometer S48, 1mm horizontal line in 0.01mm divisions, no cover glass, black slide/glass disc
Stage micrometer S48, 1mm horizontal line in 0.01mm divisions, no cover glass, black slide/glass disc Stage micrometer S48 with a 1mm horizontal scale with 0.01mm divisions on glass disc, no cover glass on pattern. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG48T0 Stage micrometer S48, 1mm horizontal line in 0.01mm divisions, no cover glass, black slide/glass disc
Qty:

each €174,00
35-SG48TG Stage micrometer S48 with manufacturers comparison certificate
Qty:

each €480,00
35-SG48TU Stage micrometer S48 with UKAS traceable calibration certificate
Qty:

each €520,50
35-SG48TN Stage micrometer S48 with NPL traceable calibration certificate
Qty:

each €1205,00


Ordering Information for stage micrometers and graticules for reflected light

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

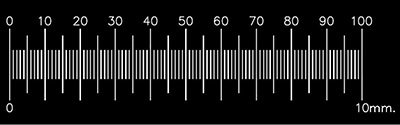

Stage micrometer S1R, 10mm horizontal line in 0.1mm divisions, reflected light, black slide/glass disc
Stage micrometer S1R, 10mm horizontal line in 0.1mm divisions, reflected light, black slide/glass disc Stage micrometer S1R with a 10mm horizontal scale with 0.1mm divisions on glass disc. Scale etched in highly reflective chromium layer for reflected light. Scale appears black against a white background. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG01R0 Stage micrometer S1R, 10mm horizontal line in 0.1mm divisions, reflected light, black slide/glass disc
Qty:

each €174,00
35-SG01RG Stage micrometer S1R with manufacturers comparison certificate
Qty:

each €480,00
35-SG01RU Stage micrometer S1R with UKAS traceable calibration certificate
Qty:

each €520,50
35-SG01RN Stage micrometer S1R with NPL traceable calibration certificate
Qty:

each €1205,00

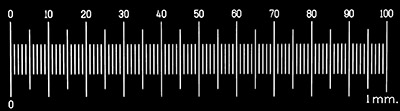

Stage micrometer S78, 1mm horizontal line in 0.01mm divisions, reflected light, black slide/glass disc
Stage micrometer S78, 1mm horizontal line in 0.01mm divisions, reflected light, black slide/glass disc Stage micrometer S78 with a 1mm horizontal scale with 0.01mm divisions on glass disc. Scale etched in highly reflective chromium layer for reflected light. Scale appears black against a white background. Mounted in black anodised aluminium slide. Calibration certificates optionally available.
Product # Unit Price* Add to Quote / Order
35-SG78R0 Stage micrometer S78, 1mm horizontal line in 0.01mm divisions, reflected light, black slide/glass disc
Qty:

each €174,00
35-SG78RG Stage micrometer S78 with manufacturers comparison certificate
Qty:

each €480,00
35-SG78RU Stage micrometer S78 with UKAS traceable calibration certificate
Qty:

each €520,50
35-SG78RN Stage micrometer S78 with NPL traceable calibration certificate
Qty:

each €1205,00


Ordering information for the counting graticules

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Counting graticule S9, 1x1mm in 0.1mm squares, black slide/glass disc
Counting graticule S9, 1x1mm in 0.1mm squares, black slide/glass disc Stage micrometer S09 with a 1 x 1mm counting grid with 0.1mm squares on glass disc. Mounted in black anodised aluminium slide.
Product # Unit Price* Add to Quote / Order
35-SG09C0 Counting graticule S9, 1x1mm in 0.1mm squares, black slide/glass disc
Qty:

each €184,50


Counting graticule S10, 0.5x0.5mm in 0.05mm squares, black slide/glass disc
Counting graticule S10, 0.5x0.5mm in 0.05mm squares, black slide/glass disc Stage micrometer S10 with a 0.5 x 0.5mm counting grid with 0.05mm squares on glass disc. Mounted in black anodised aluminium slide.
Product # Unit Price* Add to Quote / Order
35-SG10C0 Counting graticule S10, 0.5x0.5mm in 0.05mm squares, black slide/glass disc
Qty:

each €184,50


Counting graticule S28, 0.2x0.2mm in 0.01mm squares, black slide/glass disc
Counting graticule S28, 0.2x0.2mm in 0.01mm squares, black slide/glass disc Stage micrometer S28 with a 0.2 x 0.2mm counting grid with 0.01mm squares on glass disc. Mounted in black anodised aluminium slide.
Product # Unit Price* Add to Quote / Order
35-SG28C0 Counting graticule S28, 0.2x0.2mm in 0.01mm squares, black slide/glass disc
Qty:

each €196,00


Counting graticule S29, 1.5x1.5mm in 0.01mm squares, black slide/glass disc
Counting graticule S29, 1.5x1.5mm in 0.01mm squares, black slide/glass disc Stage micrometer S29 with a 1.5 x 1.5mm counting grid with 0.01mm squares on glass disc. Mounted in black anodised aluminium slide.
Product # Unit Price* Add to Quote / Order
35-SG29C0 Counting graticule S29, 1.5x1.5mm in 0.01mm squares, black slide/glass disc
Qty:

each €196,00


Ordering information for England / Halton inder slides and particle analysis test slide

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

The England finder slide S7 with 9045 unique locations, all glass slide
The England finder slide S7 with 9045 unique locations, all glass slide The England Finder slide with 9045 unique locations. A 75x25mm glass slide completely divided into 1x1mm squares which are numbered and divided into quadrants. All England Finder slides are identical; they are used to determine a specific locations on a sample slide by either overlay or by stage replacing the slide on the microscope stage and record the location. This positions can be relocated at another place or time by using the England finder. All glass slide without cover glass.
Product # Unit Price* Add to Quote / Order
35-SG07F0 The England finder slide S7 with 9045 unique locations, all glass slide
Qty:

each €196,00


The Halton finder S30 with 5x5mm location pattern, black slide/glass disc
The Halton finder S30 with 5x5mm location pattern, black slide/glass disc The S30 Halton finder uses the same pattern as the Egland finder, but covers only a 5x5mm area on a glass disc. Mounted in black anodised aluminium slide.
Product # Unit Price* Add to Quote / Order
35-SG30F0 The Halton finder S30 with 5x5mm location pattern, black slide/glass disc
Qty:

each €216,00


Particle analysis test slide SG7 with 200 numbered particles, all glass slide
Particle analysis test slide SG7 with 200 numbered particles, all glass slide Particle analysis test slide SG7 with 200 particles of various shapes and sizes. Each shape is numbered. Designed for use with image analysis and particle detection systems. Useful for testing, training and instruction. All glass slide without cover glass. Manufacturers type test certificate is optionally available. pdf.: SG7 particles shapes and data
Product # Unit Price* Add to Quote / Order
35-SGG7F0 Particle analysis test slide SG7 with 200 numbered particles, all glass slide
Qty:

each €179,30
35-SGG7FG Particle analysis test slide SG7 with manufacturers test type certificate
Qty:

each €435,00




SEM Supplies

TEM Supplies

Calibration

Sample Preparation

AFM / SPM

  Product Menu with Images
  SEM Sample Stubs
  Carbon Tabs
  Sample Stub Adapters
  SEM Stage Adapters
  SEM Sample Holders
  SEM Preparation Stands
  Filaments / Cathodes
  Silicon Finder Grid
  Gatan 3View Pins
  FEI Volumescope Pins
  SEM Stub Storage Boxes
  Phenom Supplies
  JEOL NeoScope Supplies
  Hitachi TM Series Supplies
  Field & Lab Sampler Kits
  FlowView liquid sample Kit

Instruments

  Acoustic Enclosures
  Cressington SEM coaters
  TEM Sample Prep
  Diaphragm Pump
  Rotary vacuum Pump
  Precision diamond saw
  TEM Grids
  TEM Support Films
  Silicon Nitride Films
  K-Kit Wet Cell Holder
  Graphene Films
  TEM Grid Boxes
  Cryo Grid Boxes
  TEM Sample Staining
  3mm Embedding Tubes
  Filaments/Cathodes
  Eyelash Manipulators

Cryo Supplies

  Cryo Grid Boxes
  Other Cryo Supplies

FIB Supplies

  FIB Lift-out Grids
  FIB Low Profile Stubs
  FIB Grid Holders
  FIB Pre-tilt Holders
  FIB Pre-tilt stubs
  FIB Grid Boxes
  SEM / FIB Magn. Calib.
  SEM Res. Test Spec.
  EDS / WDS Calibration
  TEM Calibration
  AFM / SPM Calibration
  LM Magn. Calibration

Vacuum Supplies

  Vacuum Gauges
  KF/NW Vacuum Parts
  KF/NW Vacuum Hoses
  ISO Vacuum flange parts
  Vacuum Oil and Grease
  Vacuum Sealant
  Diaphragm Pump
  Rotary vacuum Pump
  Vacuum Sample Storage
  Vacuum Pick-Up Pens

Sample Coating Supplies

  Sputter Targets
  Carbon Rods & Fibers
  Quartz QCM Crystals
  SEM Sample Coating Fluid

Evaporation Supplies

  Thermal Evaporation Sources
  Evaporation Materials
  Supports & Substrates
  SEM Preparation Stands
  Tweezers
  Probes & Picks
  Applicators & Swabs
  Plastic Transfer Pipettes
  Cutting Tools / Scissors
  Conductive Paint/Cement
  Conductive Tapes & Tabs
  Non-Conductive Adhesives
  Sample Storage
  Hand Tools
  Sorting Wire Mesh
  Preparation Surfaces
  Cleaning / Gloves
  Conductive Metal Powders
  Metallographic Sample Prep
  AFM/SPM Discs
  AFM/SPM Disc Pick-up Tool
  AFM/SPM Holders
  AFM/SPM Disc Storage
  Cantilever Tweezers
  AFM/SPM Discs Tweezers
  Nano-Tec Mica Discs
  HOPG Substrates

Light Microscopy

  Correlative Cover Slips
  Glass Microscope Slides
  Glass Cover Slips
  Quartz Microscope Slides
  Quartz Cover Slips
  Black Metal Slides
  Slide Storage Boxes
  LM Calibration
  Plastic Transfer Pipettes
  Optical Lens Tissue
  Glass Petri Dishes
  Digital Microscope
  PTFE Beakers
