EM-Tec SEM sample stub adapters
Introduction
A few examples

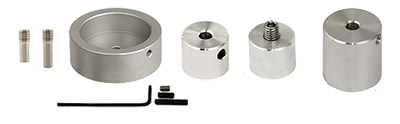

#11-012345 EM-Tec US6 universal SEM specimen stub adapter set
#11-000210 EM-Tec PH10 pin stub extender, extra 10mm high
#11-000322
EM-Tec HS18 Hitachi stub extender assembly with locking nut
#11-000205 EM-Tec PS4 pin stub adapter for Cambridge S4 mounts
The Em-Tec SEM stub adapters enable the use of all common types of SEM stubs or mounts in your SEM. Advantages of the cost-effective and practical EM-Tec SEM stub adapters are:
- sample mounting independent of SEM platform
- save time with no need to re-mount samples
- use calibration and resolution standards mounted on different stubs
- no need to risk sample integrity
- enables collaborative investigation of samples
There are basically 5 common types of SEM sample stubs:
- Standard pin stubs with standard 8mm and 9.5mm long pin used on TFS, FEI, Philips, Tescan, Phenom, Aspex, RJ Lee, Cambridge Instruments, Leica and CamScan SEMs and SEM/FIB systems
- Zeiss pin stubs with short 6mm pin for Zeiss and LEO SEMs, CrossBeams and SEM/FIB systems
- Plain cylinder stubs for JEOL SEMs and SEM/FIB systems
- Hitachi cylinder stubs with M4 threaded base for Hitachi SEMs and FIBs
- Plain cylinder stubs for ISI, ABT, Topcon SEMs
For each of the above type mentioned SEM stubs there are EM-Tec SEM stub adapters available. The EM-Tec SEM stub adapters are essentially made with the base of one type of an SEM stub and a top compatible with another type of SEM sample stub. The EM-Tec SEM stub adaptors are all constructed of vacuum grade aluminium and made to original manufacturers specifications. The Hitachi stub extensions are made from self-lubricating brass with aluminium locking ring. EM-Tec SEM stub adapters types are available as:
- Pin stub adapters for using other SEM stubs in pin type SEMs such as TFS, FEI, Philips, Tescan, Phenom, Aspex, Cambridge Instruments, Leica, etc. These can be used in Amray systems as well.
- Short pin stub adapters for using other SEM stubs in Zeiss and LEO SEMs
- JEOL stub adapters for using other pin stubs and Hitachi stubs in JEOL SEMs
- Hitachi M4 stub adapters for using pin stubs and JEOL stubs in Hitachi SEMs
- Other SEM stub adapters for less common SEMs such as ISI/ABT/Topcon and Agilent/Keysight

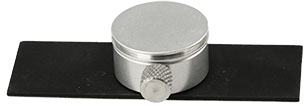

- Metal slide adapter to accommodate pin stubs on reflected light microscopes
For labs with multiple SEM platforms or for those who are regularly using diferent brands of SEMs, we offer the EM-Tec universal SEM stub adapter set. This universal SEM stub adapter set includes pin stub adapters, JEOL stub adapters (up to 25mm) and Hitachi stub adapters, all both ways. If you can't find the SEM stub or mount adapter you are looking for, please contact us. We might be able to offer a different solution or can manufacture custom SEM stub adapters.
Overview and specifications of the available EM-Tec SEM stub adapters
Product # |
Type |
Base is |
Top accepts |
Dimensions |
| EM-Tec stub adapters based on standard pin stubs for FEI, Philips, Tescan, Phenom, Aspex, Cambridge Instr. |
11-000109 |
PR4 |
ØØ3.15 x 8.0mm pin |
Hitachi M4 thread |
Ø9 x 13.5mm |
11-000119 |
PT4 |
ØØ3.15 x 8.0mm pin |
Hitachi M4 thread |
Ø4 x 12mm |
11-000205 |
PS4 |
ØØ3.15 x 8.0mm pin |
Cambridge S4 stub |
Ø30 x 18mm |
11-000210 |
PH10 |
ØØ3.15 x 8.0mm pin |
Ø3.2x9.5mm pin |
Ø12.7 x 21.2mm |
11-000216 |
PJ12 |
ØØ3.15 x 8.0mm pin |
Ø9.5/ Ø12.2 mm JEOL stub |
Ø25 x 18mm |
11-000227 |
PJ25 |
ØØ3.15 x 8.0mm pin |
Ø25mm JEOL stub |
Ø34 x 18mm |
11-000232 |
PJ32 |
ØØ3.15 x 8.0mm pin |
Ø32mm JEOL stub |
Ø40 x 18mm |
11-000251 |
PJ50 |
ØØ3.15 x 8.0mm pin |
Ø50mm JEOL stub |
Ø59 x 18mm |
| EM-Tec stub adapters for Zeiss/LEO with short pin |
11-000106 |
ZR4 |
Ø3.2 x 6mm pin |
Hitachi M4 thread |
Ø9 x 11.5mm |
11-000116 |
Z4 |
Ø3.2 x 6mm pin |
Hitachi M4 thread |
Ø4 x 10mm |
11-000126 |
ZJ12 |
Ø3.2 x 6mm pin |
Ø9.5/ Ø12.2 mm JEOL stub |
Ø25 x 16mm |
11-000127 |
ZJ25 |
Ø3.2 x 6mm pin |
Ø25mm JEOL stub |
Ø34 x 16mm |
11-000128 |
ZJ32 |
Ø3.2 x 6mm pin |
Ø32mm JEOL stub |
Ø40 x 16mm |
11-000129 |
ZJ50 |
Ø3.2 x 6mm pin |
Ø50mm JEOL stub |
Ø59 x 16mm |
| EM-Tec stub adapters for JEOL and JEOL Neoscope |
11-000503 |
J10P |
Ø9.5 x 9.5mm |
Ø3.2x9.5mm pin |
Ø9.5 x 9.5mm |
11-000513 |
J12P |
Ø12.2 x 10mm |
Ø3.2x9.5mm pin |
Ø12.2 x 10mm |
11-000523 |
J25P |
Ø25 x 10mm |
Ø3.2x9.5mm pin |
Ø25 x 10mm |
11-000504 |
J10H |
Ø9.5 x 9.5mm |
Hitachi M4 thread |
Ø9.5 x 13.5mm |
11-000514 |
J12H |
Ø12.2 x 10mm |
Hitachi M4 thread |
Ø12.2 x 14mm |
11-000524 |
J25H |
Ø25 x 10mm |
Hitachi M4 thread |
Ø25 x 14mm |
| EM-Tec stub adapters for Hitachi SEMs and table top SEMs |
11-000304 |
H15P |
Hitachi M4 thread |
Ø3.2x9.5mm pin |
Ø15 x 15mm |
11-000305 |
HS4 |
Hitachi M4 thread |
Cambridge S4 stub |
Ø30 x 10mm |
11-000310 |
HJ10 |
Hitachi M4 thread |
Ø9.5mm JEOL stub |
Ø15 x 10mm |
11-000311 |
HJ11 |
Hitachi M4 thread |
Ø12.2mm JEOL stub |
Ø15 x 10mm |
11-000316 |
HJ12 |
Hitachi M4 thread |
Ø15mm JEOL stub |
Ø25x 10mm |
11-000326 |
HJ25 |
Hitachi M4 thread |
Ø25mm JEOL stub |
Ø34 x 10mm |
11-000332 |
HJ32 |
Hitachi M4 thread |
Ø32mm JEOL stub |
Ø40 x 10mm |
11-000351 |
HJ50 |
Hitachi M4 thread |
Ø50mm JEOL stub |
Ø59 x 10mm |
11-000309 |
H10 |
Hitachi M4 thread |
Hitachi M4 thread |
Ø15 x 14mm |
11-000321 |
HS12 |
Hitachi M4 thread |
Hitachi M4 thread |
Ø20 x 16mm |
11-000322 |
HS18 |
Hitachi M4 thread |
Hitachi M4 thread |
Ø20 x 22mm |
11-000323 |
HS25 |
Hitachi M4 thread |
Hitachi M4 thread |
Ø20 x 29mm |
| EM-Tec stub adapter for Keysight/Agilent/Novelex 8500 and AmRay |
11-000120 |
KR4 |
Ø3.2 x 20mm pin |
Hitachi M4 thread |
Ø30 x 19.5 |
| EM-Tec stub adapter for ISI/ABT/Topcon |
11-000604 |
I15H |
Ø15 x 10mm stub |
Hitachi M4 thread |
Ø15 x 14mm |
| EM-Tec stub adapter for reflected light microscopes |
11-000675 |
M31P |
76.2x25.4mm |
Ø3.2x9.5mm pin |
76.2 x 25.4 x 11.2mm |
Ordering information for Pin stub adapters for using different SEM stubs in pin type SEMs such as TFS, FEI, Philips, Tescan, Phenom, Aspex, Cambridge Instruments, Leica, etc.Technical specifications General information
